Hardware-Friendly Implementation of Physical Reservoir Computing with CMOS-based Time-domain Analog Spiking Neurons

This paper introduces an analog spiking neuron that utilizes time-domain information, i.e., a time interval of two signal transitions and a pulse width, to construct a spiking neural network (SNN) for a hardware-friendly physical reservoir computing (RC) on a complementary metal-oxide-semiconductor (CMOS) platform. A neuron with leaky integrate-and-fire is realized by employing two voltage-controlled oscillators (VCOs) with opposite sensitivities to the internal control voltage, and the neuron connection structure is restricted by the use of only 4 neighboring neurons on the 2-dimensional plane to feasibly construct a regular network topology. Such a system enables us to compose an SNN with a counter-based readout circuit, which simplifies the hardware implementation of the SNN. Moreover, another technical advantage thanks to the bottom-up integration is the capability of dynamically capturing every neuron state in the network, which can significantly contribute to finding guidelines on how to enhance the performance for various computational tasks in temporal information processing. Diverse nonlinear physical dynamics needed for RC can be realized by collective behavior through dynamic interaction between neurons, like coupled oscillators, despite the simple network structure. With behavioral system-level simulations, we demonstrate physical RC through short-term memory and exclusive OR tasks, and the spoken digit recognition task with an accuracy of 97.7% as well. Our system is considerably feasible for practical applications and also can be a useful platform for studying the mechanism of physical RC.

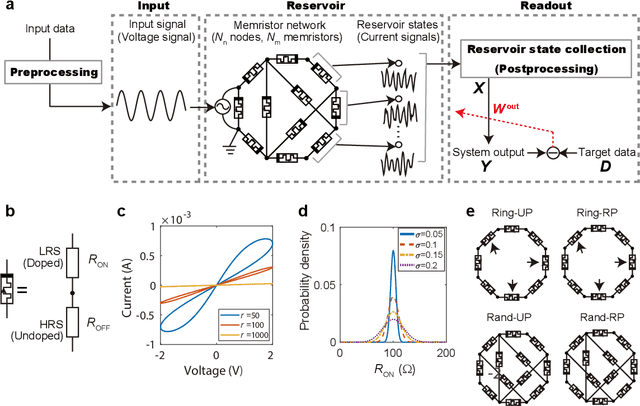

Simulation platform for pattern recognition based on reservoir computing with memristor networks

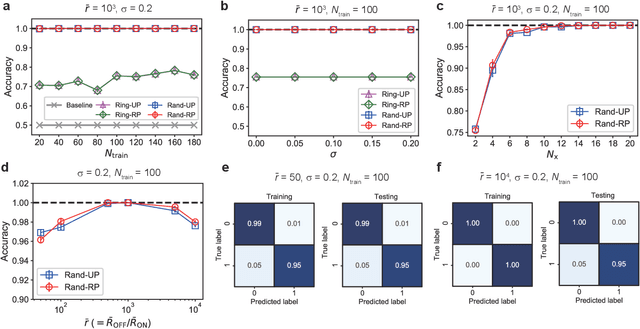

Memristive systems and devices are potentially available for implementing reservoir computing (RC) systems applied to pattern recognition. However, the computational ability of memristive RC systems depends on intertwined factors such as system architectures and physical properties of memristive elements, which complicates identifying the key factor for system performance. Here we develop a simulation platform for RC with memristor device networks, which enables testing different system designs for performance improvement. Numerical simulations show that the memristor-network-based RC systems can yield high computational performance comparable to that of state-of-the-art methods in three time series classification tasks. We demonstrate that the excellent and robust computation under device-to-device variability can be achieved by appropriately setting network structures, nonlinearity of memristors, and pre/post-processing, which increases the potential for reliable computation with unreliable component devices. Our results contribute to an establishment of a design guide for memristive reservoirs toward a realization of energy-efficient machine learning hardware.
