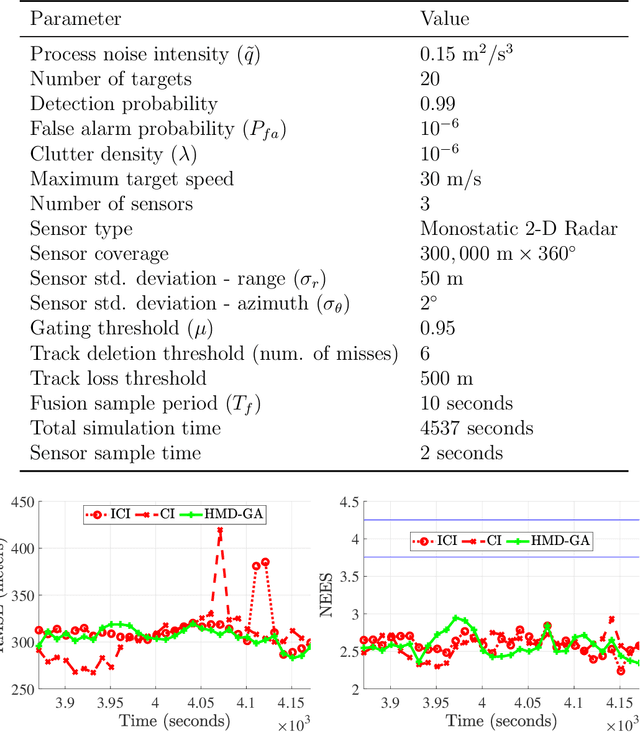

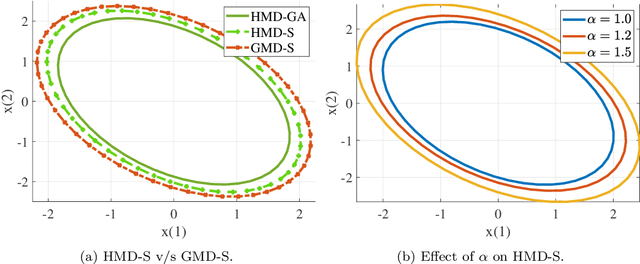

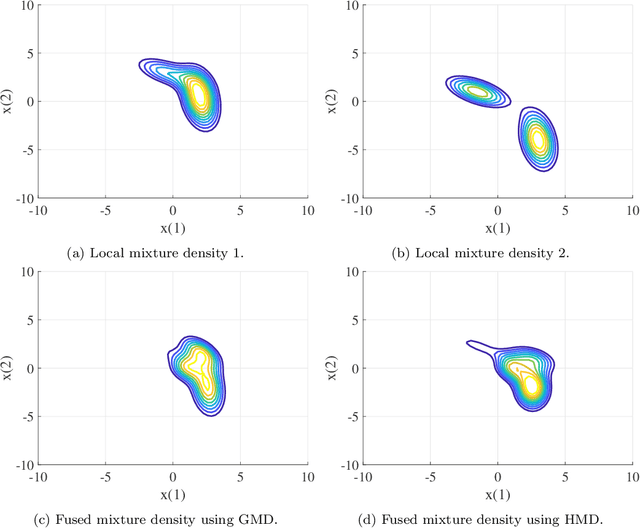

Harmonic Mean Density Fusion in Distributed Tracking: Performance and Comparison

A distributed sensor fusion architecture is preferred in a real target-tracking scenario as compared to a centralized scheme since it provides many practical advantages in terms of computation load, communication bandwidth, fault-tolerance, and scalability. In multi-sensor target-tracking literature, such systems are better known by the pseudonym - track fusion, since processed tracks are fused instead of raw measurements. A fundamental problem, however, in such systems is the presence of unknown correlations between the tracks, which renders a standard Kalman filter (naive fusion) useless. A widely accepted solution is covariance intersection (CI) which provides near-optimal estimates but at the cost of a conservative covariance. Thus, the estimates are pessimistic, which might result in a delayed error convergence. Also, fusion of Gaussian mixture densities is an active area of research where standard methods of track fusion cannot be used. In this article, harmonic mean density (HMD) based fusion is discussed, which seems to handle both of these issues. We present insights on HMD fusion and prove that the method is a result of minimizing average Pearson divergence. This article also provides an alternative and easy implementation based on an importance-sampling-like method without the requirement of a proposal density. Similarity of HMD with inverse covariance intersection is an interesting find, and has been discussed in detail. Results based on a real-world multi-target multi-sensor scenario show that the proposed approach converges quickly than existing track fusion algorithms while also being consistent, as evident from the normalized estimation-error squared (NEES) plots.

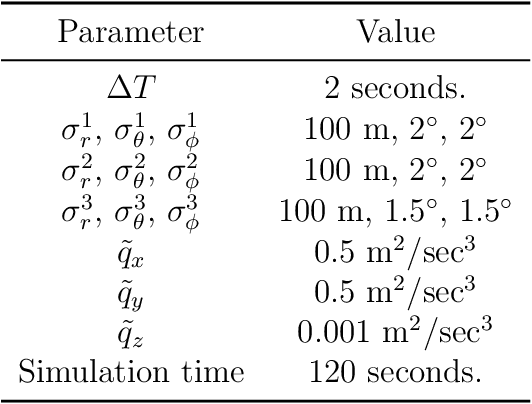

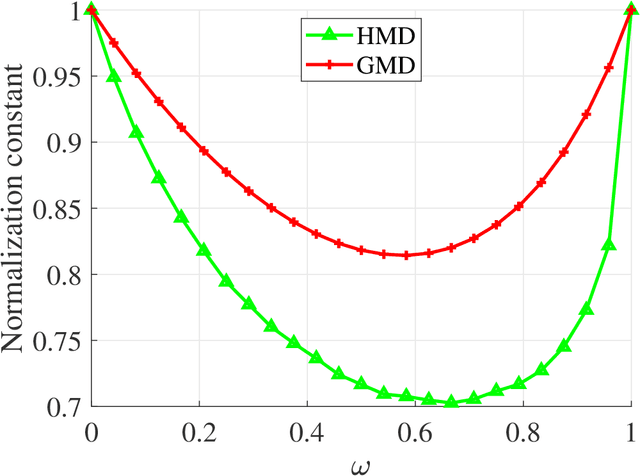

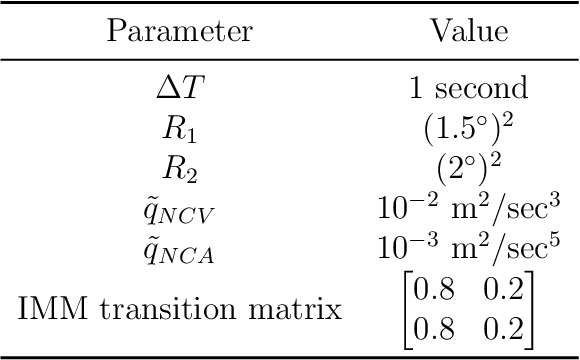

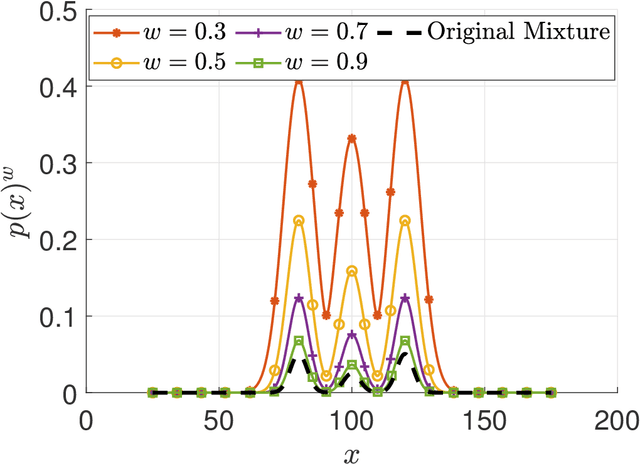

On Pooling-Based Track Fusion Strategies : Harmonic Mean Density

In a distributed sensor fusion architecture, using standard Kalman filter (naive fusion) can lead to degraded results as track correlations are ignored and conservative fusion strategies are employed as a sub-optimal alternative to the problem. Since, Gaussian mixtures provide a flexible means of modeling any density, therefore fusion strategies suitable for use with Gaussian mixtures are needed. While the generalized covariance intersection (CI) provides a means to fuse Gaussian mixtures, the procedure is cumbersome and requires evaluating a non-integer power of the mixture density. In this paper, we develop a pooling-based fusion strategy using the harmonic mean density (HMD) interpolation of local densities and show that the proposed method can handle both Gaussian and mixture densities without much changes to the framework. Mathematical properties of the proposed fusion strategy are studied and simulated on 2D and 3D maneuvering target tracking scenarios. The simulations suggest that the proposed HMD fusion performs better than other conservative strategies in terms of root-mean-squared error while being consistent.

Trigonometric Moments of a Generalized von Mises Distribution in 2-D Range-Only Tracking

A 2D range-only tracking scenario is non-trivial due to two main reasons. First, when the states to be estimated are in Cartesian coordinates, the uncertainty region is multi-modal. The second reason is that the probability density function of azimuth conditioned on range takes the form of a generalized von Mises distribution, which is hard to tackle. Even in the case of implementing a uni-modal Kalman filter, one needs expectations of trigonometric functions of conditional bearing density, which are not available in the current literature. We prove that the trigonometric moments (circular moments) of the azimuth density conditioned on range can be computed as an infinite series, which can be sufficiently approximated by relatively few terms in summation. The solution can also be generalized to any order of the moments. This important result can provide an accurate depiction of the conditional azimuth density in 2D range-only tracking geometries. We also present a simple optimization problem that results in deterministic samples of conditional azimuth density from the knowledge of its circular moments leading to an accurate filtering solution. The results are shown in a two-dimensional simulation, where the range-only sensor platform maneuvers to make the system observable. The results prove that the method is feasible in such applications.
