Multimodal Query-guided Object Localization

Consider a scenario in one-shot query-guided object localization where neither an image of the object nor the object category name is available as a query. In such a scenario, a hand-drawn sketch of the object could be a choice for a query. However, hand-drawn crude sketches alone, when used as queries, might be ambiguous for object localization, e.g., a sketch of a laptop could be confused for a sofa. On the other hand, a linguistic definition of the category, e.g., a small portable computer small enough to use in your lap" along with the sketch query, gives better visual and semantic cues for object localization. In this work, we present a multimodal query-guided object localization approach under the challenging open-set setting. In particular, we use queries from two modalities, namely, hand-drawn sketch and description of the object (also known as gloss), to perform object localization. Multimodal query-guided object localization is a challenging task, especially when a large domain gap exists between the queries and the natural images, as well as due to the challenge of combining the complementary and minimal information present across the queries. For example, hand-drawn crude sketches contain abstract shape information of an object, while the text descriptions often capture partial semantic information about a given object category. To address the aforementioned challenges, we present a novel cross-modal attention scheme that guides the region proposal network to generate object proposals relevant to the input queries and a novel orthogonal projection-based proposal scoring technique that scores each proposal with respect to the queries, thereby yielding the final localization results. ...

Sketch-Guided Object Localization in Natural Images

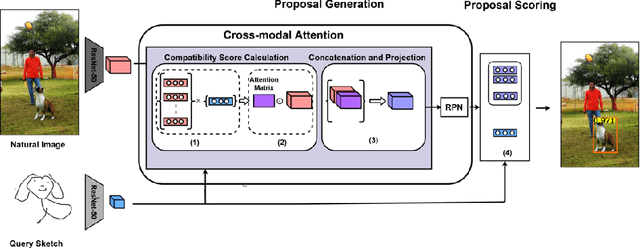

We introduce the novel problem of localizing all the instances of an object (seen or unseen during training) in a natural image via sketch query. We refer to this problem as sketch-guided object localization. This problem is distinctively different from the traditional sketch-based image retrieval task where the gallery set often contains images with only one object. The sketch-guided object localization proves to be more challenging when we consider the following: (i) the sketches used as queries are abstract representations with little information on the shape and salient attributes of the object, (ii) the sketches have significant variability as they are hand-drawn by a diverse set of untrained human subjects, and (iii) there exists a domain gap between sketch queries and target natural images as these are sampled from very different data distributions. To address the problem of sketch-guided object localization, we propose a novel cross-modal attention scheme that guides the region proposal network (RPN) to generate object proposals relevant to the sketch query. These object proposals are later scored against the query to obtain final localization. Our method is effective with as little as a single sketch query. Moreover, it also generalizes well to object categories not seen during training and is effective in localizing multiple object instances present in the image. Furthermore, we extend our framework to a multi-query setting using novel feature fusion and attention fusion strategies introduced in this paper. The localization performance is evaluated on publicly available object detection benchmarks, viz. MS-COCO and PASCAL-VOC, with sketch queries obtained from `Quick, Draw!'. The proposed method significantly outperforms related baselines on both single-query and multi-query localization tasks.
