Potential and challenges of generative adversarial networks for super-resolution in 4D Flow MRI

4D Flow Magnetic Resonance Imaging (4D Flow MRI) enables non-invasive quantification of blood flow and hemodynamic parameters. However, its clinical application is limited by low spatial resolution and noise, particularly affecting near-wall velocity measurements. Machine learning-based super-resolution has shown promise in addressing these limitations, but challenges remain, not least in recovering near-wall velocities. Generative adversarial networks (GANs) offer a compelling solution, having demonstrated strong capabilities in restoring sharp boundaries in non-medical super-resolution tasks. Yet, their application in 4D Flow MRI remains unexplored, with implementation challenged by known issues such as training instability and non-convergence. In this study, we investigate GAN-based super-resolution in 4D Flow MRI. Training and validation were conducted using patient-specific cerebrovascular in-silico models, converted into synthetic images via an MR-true reconstruction pipeline. A dedicated GAN architecture was implemented and evaluated across three adversarial loss functions: Vanilla, Relativistic, and Wasserstein. Our results demonstrate that the proposed GAN improved near-wall velocity recovery compared to a non-adversarial reference (vNRMSE: 6.9% vs. 9.6%); however, that implementation specifics are critical for stable network training. While Vanilla and Relativistic GANs proved unstable compared to generator-only training (vNRMSE: 8.1% and 7.8% vs. 7.2%), a Wasserstein GAN demonstrated optimal stability and incremental improvement (vNRMSE: 6.9% vs. 7.2%). The Wasserstein GAN further outperformed the generator-only baseline at low SNR (vNRMSE: 8.7% vs. 10.7%). These findings highlight the potential of GAN-based super-resolution in enhancing 4D Flow MRI, particularly in challenging cerebrovascular regions, while emphasizing the need for careful selection of adversarial strategies.

Prediction of flow and elastic stresses in a viscoelastic turbulent channel flow using convolutional neural networks

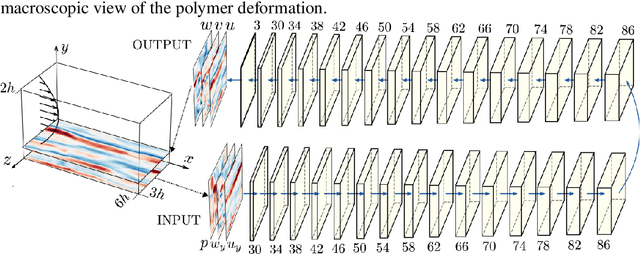

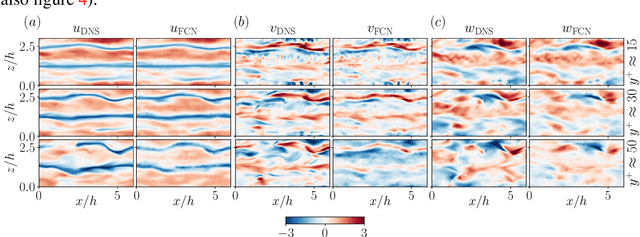

Neural-network models have been employed to predict the instantaneous flow close to the wall in a viscoelastic turbulent channel flow. The numerical simulation data at the wall is utilized to predict the instantaneous velocity fluctuations and polymeric-stress fluctuations at three different wall-normal positions. Apart from predicting the velocity fluctuations well in a hibernating flow, the neural-network models are also shown to predict the polymeric shear stress and the trace of the polymeric stresses at a given wall-normal location with reasonably good accuracy. These non-intrusive sensing models can be integrated in an experimental setting to construct the polymeric-stress field in turbulent flows, which otherwise may not be directly quantifiable in experimental measurements.
