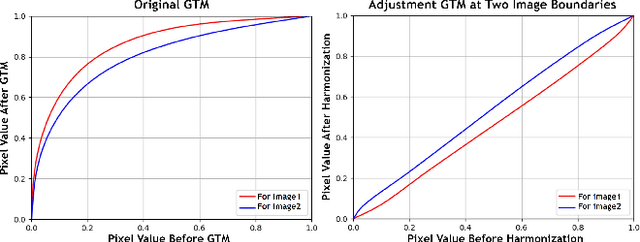

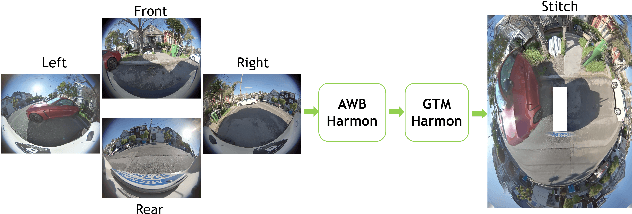

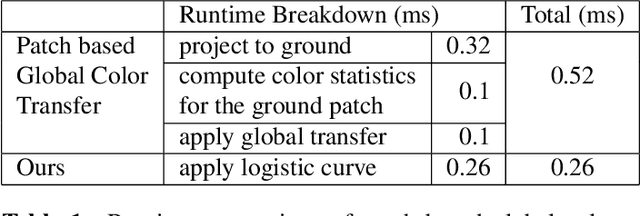

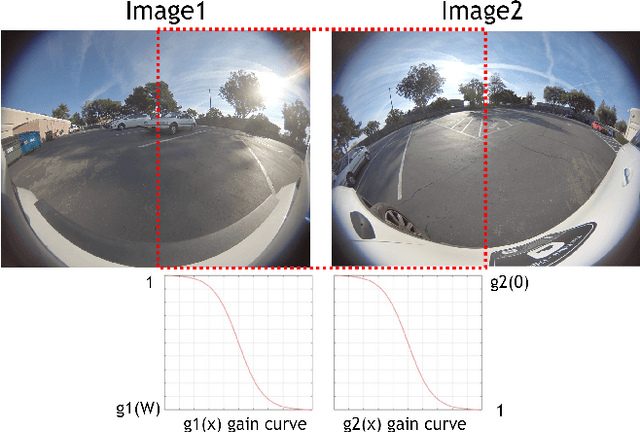

Parameter Blending for Multi-Camera Harmonization for Automotive Surround View Systems

In a surround view system, the image color and tone captured by multiple cameras can be different due to cameras applying auto white balance (AWB), global tone mapping (GTM) individually for each camera. The color and brightness along stitched seam location may look discontinuous among multiple cameras which impacts overall stitched image visual quality. To improve the color transition between adjacent cameras in stitching algorithm, we propose harmonization algorithm which applies before stitching to adjust multiple cameras' color and tone so that stitched image has smoother color and tone transition between adjacent cameras. Our proposed harmonization algorithm consists of AWB harmonization and GTM harmonization leveraging Image Signal Processor (ISP)'s AWB and GTM metadata statistics. Experiment result shows that our proposed algorithm outperforms global color transfer method in both visual quality and computational cost.

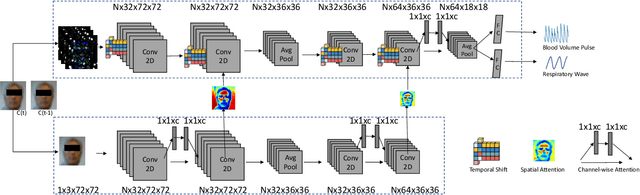

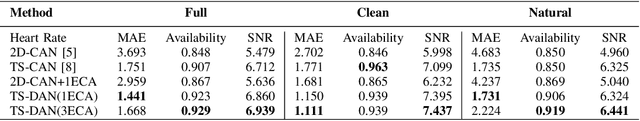

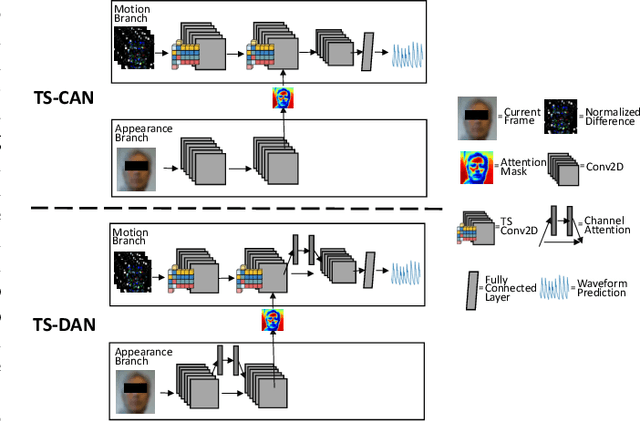

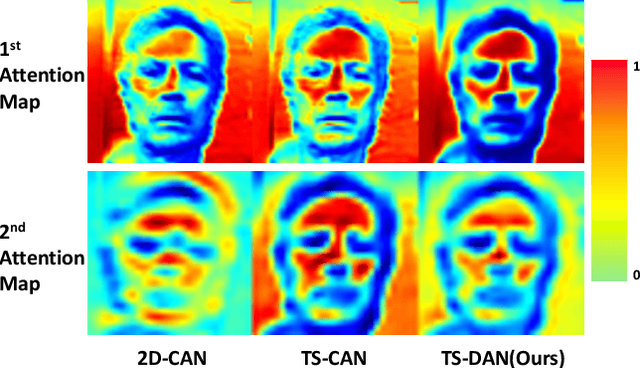

Dual Attention Network for Heart Rate and Respiratory Rate Estimation

Heart rate and respiratory rate measurement is a vital step for diagnosing many diseases. Non-contact camera based physiological measurement is more accessible and convenient in Telehealth nowadays than contact instruments such as fingertip oximeters since non-contact methods reduce risk of infection. However, remote physiological signal measurement is challenging due to environment illumination variations, head motion, facial expression, etc. It's also desirable to have a unified network which could estimate both heart rate and respiratory rate to reduce system complexity and latency. We propose a convolutional neural network which leverages spatial attention and channel attention, which we call it dual attention network (DAN) to jointly estimate heart rate and respiratory rate with camera video as input. Extensive experiments demonstrate that our proposed system significantly improves heart rate and respiratory rate measurement accuracy.
