Confinement Specific Design of SOI Rib Waveguides with Submicron Dimensions and Single Mode Operation

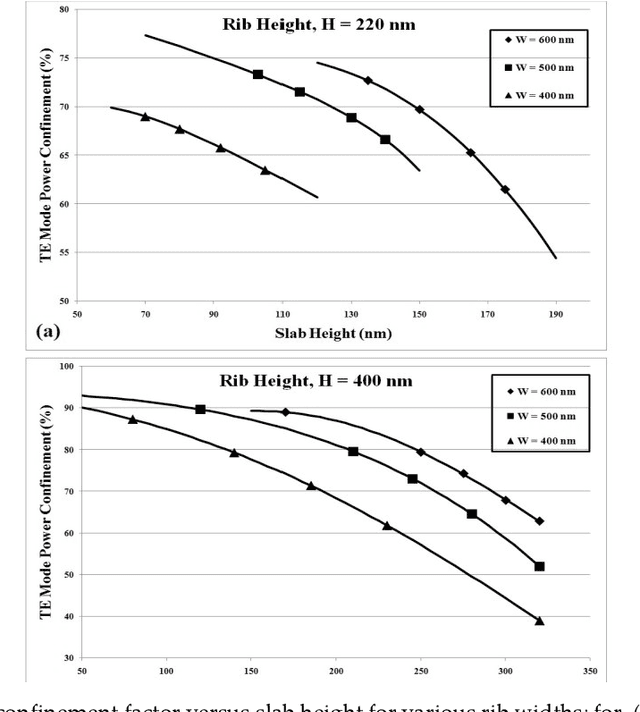

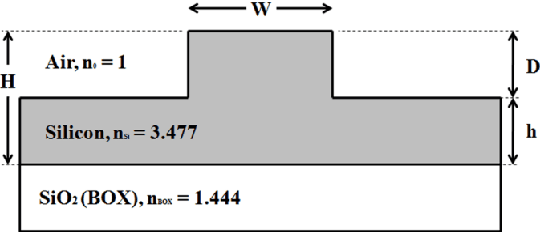

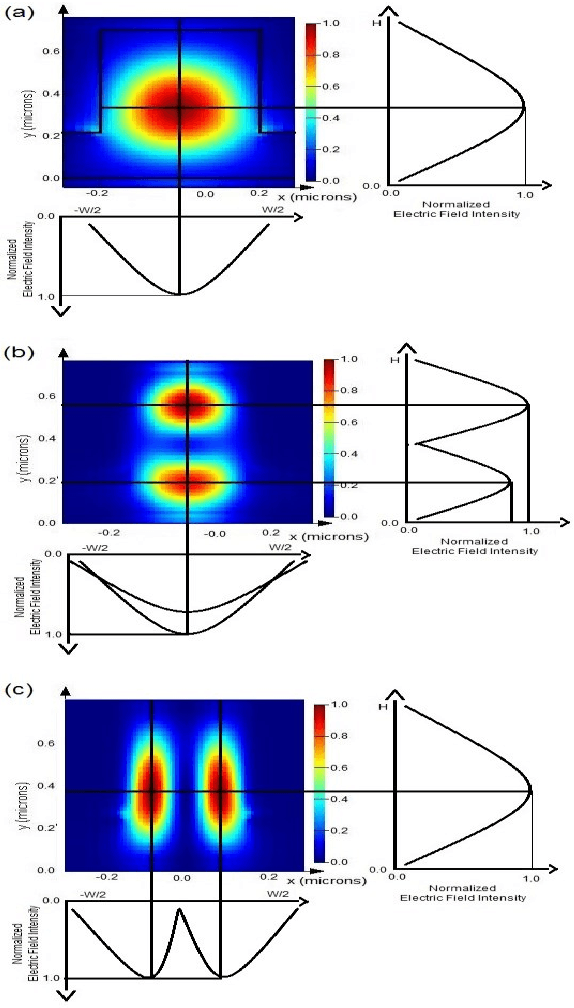

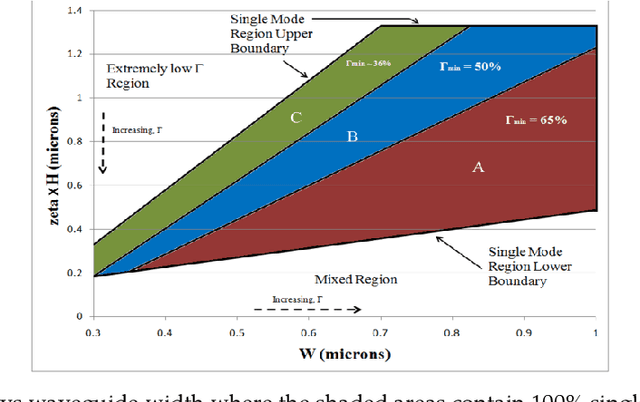

Full-vectorial finite difference method with perfectly matched layers boundaries is used to identify the single mode operation region of submicron rib waveguides fabricated using sili-con-on-insulator material system. Achieving high mode power confinement factors is emphasized while maintaining the single mode operation. As opposed to the case of large cross-section rib waveguides, theoretical single mode conditions have been demonstrated to hold for sub-micron waveguides with accuracy approaching 100%. Both, the deeply and the shallowly etched rib waveguides have been considered and the single mode condition for entire sub-micrometer range is presented while adhering to design specific mode confinement requirements.

Full 3D Model of Modulation Efficiency of Complementary Metal Oxide Semiconductor (CMOS) Compatible, Submicron, Interleaved Junction Optical Phase Shifters

Performance optimization associated with optical modulators requires reasonably accurate predictive models for key figures of merit. Interleaved PN-junction topology offers the maximum mode/junction overlap and is the most efficient modulator in depletion-mode of operation. Due to its structure, the accurate modelling process must be fully three-dimensional, which is a nontrivial computational problem. This paper presents a rigorous 3D model for the modulation efficiency of silicon-on-insulator interleaved junction optical phase modulators with submicron dimensions. Solution of Drift-Diffusion and Poisson equations were carried out on 3D finite-element-mesh and Maxwell equations were solved using Finite-Difference-Time-Domain (FDTD) method on 3D Yee-cells. Whole of the modelling process has been detailed and all the coefficients required in the model are presented. Model validation suggests < 10% RMS error.
