Economic Battery Storage Dispatch with Deep Reinforcement Learning from Rule-Based Demonstrations

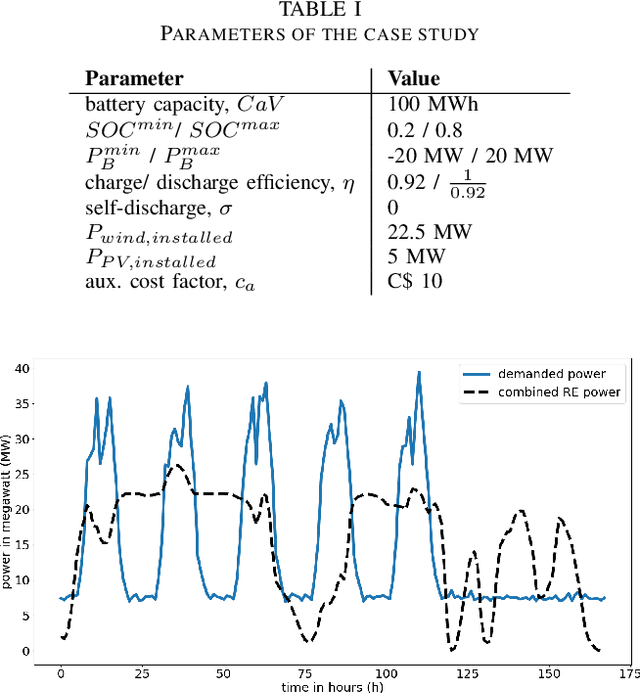

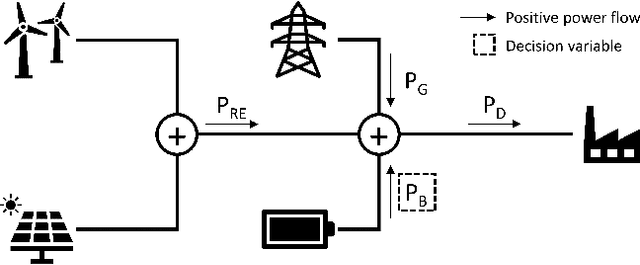

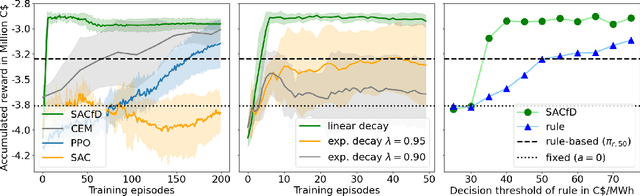

The application of deep reinforcement learning algorithms to economic battery dispatch problems has significantly increased recently. However, optimizing battery dispatch over long horizons can be challenging due to delayed rewards. In our experiments we observe poor performance of popular actor-critic algorithms when trained on yearly episodes with hourly resolution. To address this, we propose an approach extending soft actor-critic (SAC) with learning from demonstrations. The special feature of our approach is that, due to the absence of expert demonstrations, the demonstration data is generated through simple, rule-based policies. We conduct a case study on a grid-connected microgrid and use if-then-else statements based on the wholesale price of electricity to collect demonstrations. These are stored in a separate replay buffer and sampled with linearly decaying probability along with the agent's own experiences. Despite these minimal modifications and the imperfections in the demonstration data, the results show a drastic performance improvement regarding both sample efficiency and final rewards. We further show that the proposed method reliably outperforms the demonstrator and is robust to the choice of rule, as long as the rule is sufficient to guide early training into the right direction.

Optimal Economic Gas Turbine Dispatch with Deep Reinforcement Learning

Dispatching strategies for gas turbines (GTs) are changing in modern electricity grids. A growing incorporation of intermittent renewable energy requires GTs to operate more but shorter cycles and more frequently on partial loads. Deep reinforcement learning (DRL) has recently emerged as a tool that can cope with this development and dispatch GTs economically. The key advantages of DRL are a model-free optimization and the ability to handle uncertainties, such as those introduced by varying loads or renewable energy production. In this study, three popular DRL algorithms are implemented for an economic GT dispatch problem on a case study in Alberta, Canada. We highlight the benefits of DRL by incorporating an existing thermodynamic software provided by Siemens Energy into the environment model and by simulating uncertainty via varying electricity prices, loads, and ambient conditions. Among the tested algorithms and baseline methods, Deep Q-Networks (DQN) obtained the highest rewards while Proximal Policy Optimization (PPO) was the most sample efficient. We further propose and implement a method to assign GT operation and maintenance cost dynamically based on operating hours and cycles. Compared to existing methods, our approach better approximates the true cost of modern GT dispatch and hence leads to more realistic policies.
