LSDNet: Trainable Modification of LSD Algorithm for Real-Time Line Segment Detection

As of today, the best accuracy in line segment detection (LSD) is achieved by algorithms based on convolutional neural networks - CNNs. Unfortunately, these methods utilize deep, heavy networks and are slower than traditional model-based detectors. In this paper we build an accurate yet fast CNN- based detector, LSDNet, by incorporating a lightweight CNN into a classical LSD detector. Specifically, we replace the first step of the original LSD algorithm - construction of line segments heatmap and tangent field from raw image gradients - with a lightweight CNN, which is able to calculate more complex and rich features. The second part of the LSD algorithm is used with only minor modifications. Compared with several modern line segment detectors on standard Wireframe dataset, the proposed LSDNet provides the highest speed (among CNN-based detectors) of 214 FPS with a competitive accuracy of 78 Fh . Although the best-reported accuracy is 83 Fh at 33 FPS, we speculate that the observed accuracy gap is caused by errors in annotations and the actual gap is significantly lower. We point out systematic inconsistencies in the annotations of popular line detection benchmarks - Wireframe and York Urban, carefully reannotate a subset of images and show that (i) existing detectors have improved quality on updated annotations without retraining, suggesting that new annotations correlate better with the notion of correct line segment detection; (ii) the gap between accuracies of our detector and others diminishes to negligible 0.2 Fh , with our method being the fastest.

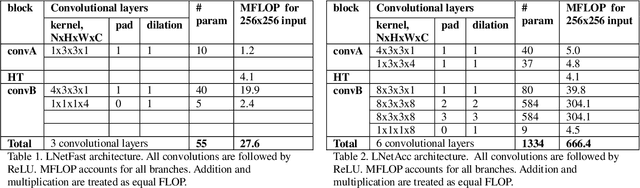

Line detection via a lightweight CNN with a Hough Layer

Line detection is an important computer vision task traditionally solved by Hough Transform. With the advance of deep learning, however, trainable approaches to line detection became popular. In this paper we propose a lightweight CNN for line detection with an embedded parameter-free Hough layer, which allows the network neurons to have global strip-like receptive fields. We argue that traditional convolutional networks have two inherent problems when applied to the task of line detection and show how insertion of a Hough layer into the network solves them. Additionally, we point out some major inconsistencies in the current datasets used for line detection.
