A Database for Research on Detection and Enhancement of Speech Transmitted over HF links

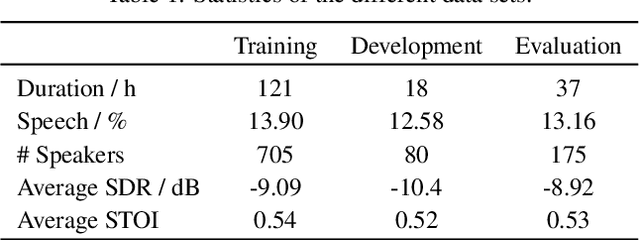

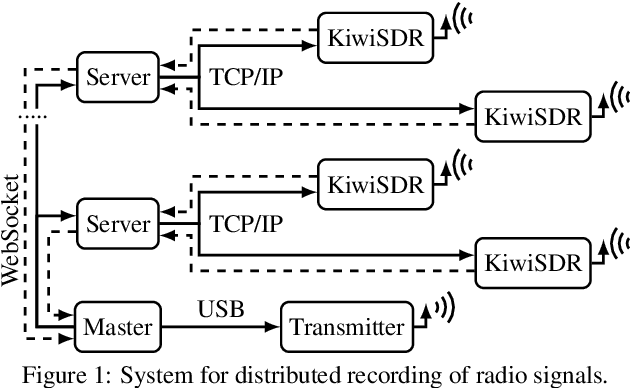

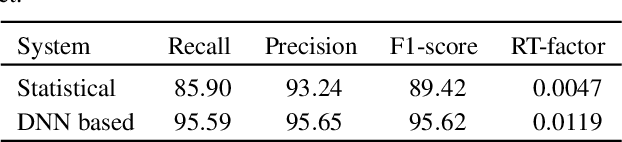

In this paper we present an open database for the development of detection and enhancement algorithms of speech transmitted over HF radio channels. It consists of audio samples recorded by various receivers at different locations across Europe, all monitoring the same single-sideband modulated transmission from a base station in Paderborn, Germany. Transmitted and received speech signals are precisely time aligned to offer parallel data for supervised training of deep learning based detection and enhancement algorithms. For the task of speech activity detection two exemplary baseline systems are presented, one based on statistical methods employing a multi-stage Wiener filter with minimum statistics noise floor estimation, and the other relying on a deep learning approach.

Open Range Pitch Tracking for Carrier Frequency Difference Estimation from HF Transmitted Speech

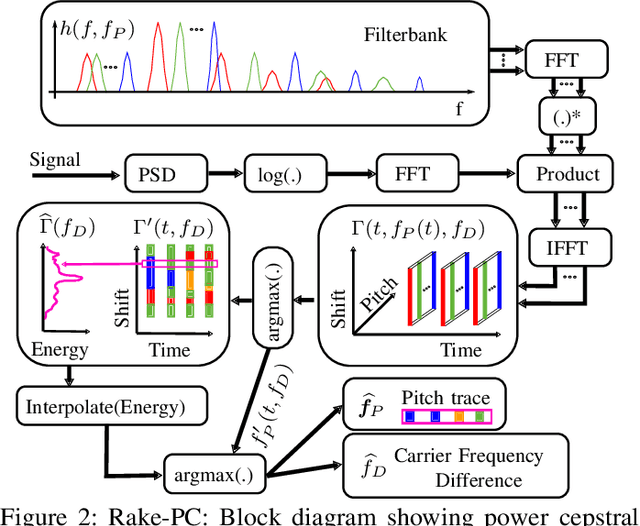

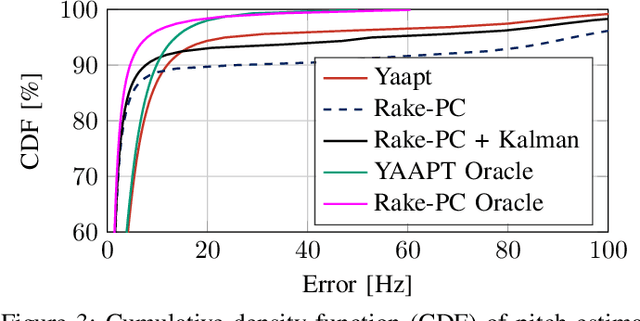

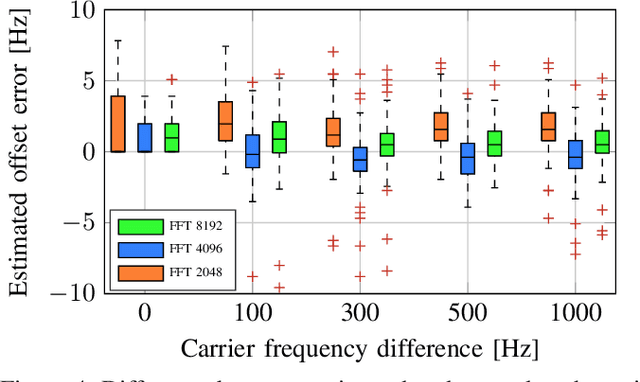

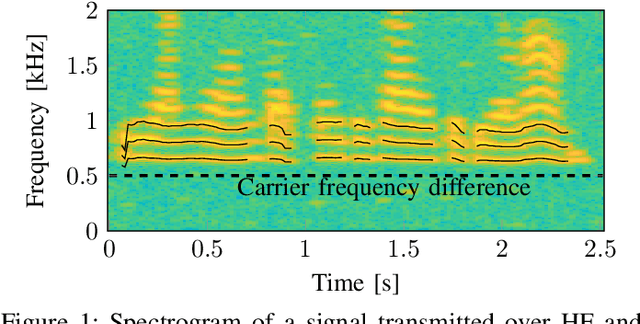

In this paper we investigate the task of detecting carrier frequency differences from demodulated single sideband signals by examining the pitch contours of the received baseband speech signal in the short-time spectral domain. From the detected pitch frequency trajectory and its harmonics a carrier frequency difference, which is caused by demodulating the radio signal with the wrong carrier frequency, can be deduced. A computationally efficient realization in the power cepstral domain is presented. The core component, i.e., the pitch tracking algorithm, is shown to perform comparably to a state of the art algorithm. The full carrier frequency difference estimation system is tested on recordings of real transmissions over HF links. A comparison with an existing approach shows improved estimation accuracy, both on short and longer speech utterances
