Low-overhead Joint Channel Estimation and Data Detection in ZP-OTFS System

High pilot overhead and peak-to-average power ratio (PAPR) are challenging issues in channel estimation for orthogonal time frequency space (OTFS) systems. ZP-OTFS is a modified OTFS system where multiple rows along the delay axis are zero. We propose a two-step channel estimation method for the ZP-OTFS system. The proposed method inserts pilot sequences in the zero bins of the ZP-OTFS system, resulting in low overhead and PAPR. Our simulation results demonstrate the effectiveness of the proposed method and show that it outperforms embedded pilot estimation in terms of normalized mean square error (NMSE) at the same bit error rate (BER).

Superimposed Channel Estimation in OTFS Modulation Using Compressive Sensing

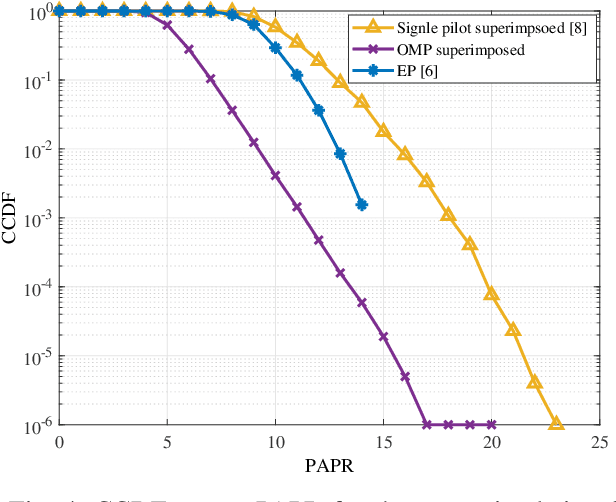

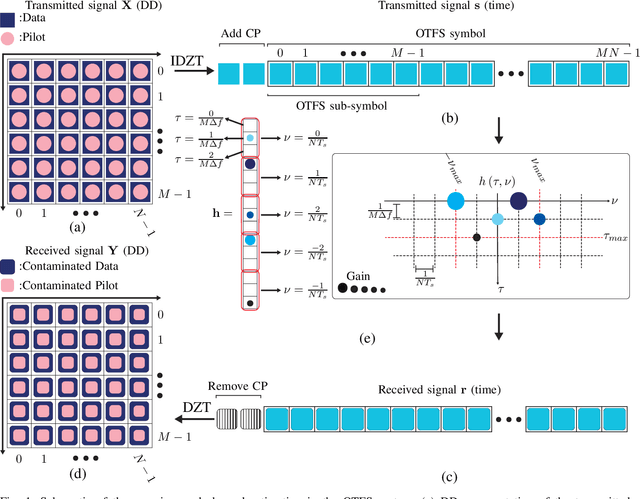

Orthogonal time frequency space (OTFS) technique is a two-dimensional modulation method that multiplexes information symbols in the delay-Doppler (DD) domain. OTFS combats high Doppler shift existing in high speed wireless communication. However, conventional channel estimation in OTFS suffers from high pilot overhead because guard symbols occupy a significant part of the DD domain grids. In this paper, a superimposed channel estimation is proposed which can completely estimate channel parameters without considering pilot overhead and performance degradation. As the channel state information (CSI) in the DD domain is sparse, a sparse recovery algorithm orthogonal matching pursuit (OMP) is used. Besides, our proposed method does not suffer from high peak to average power ratio (PAPR). To detect information symbols, a message passing (MP) detector, which exploits the sparsity of DD channel representation, is employed.
