Data-driven Joint Detection and Localization of Acoustic Reflectors

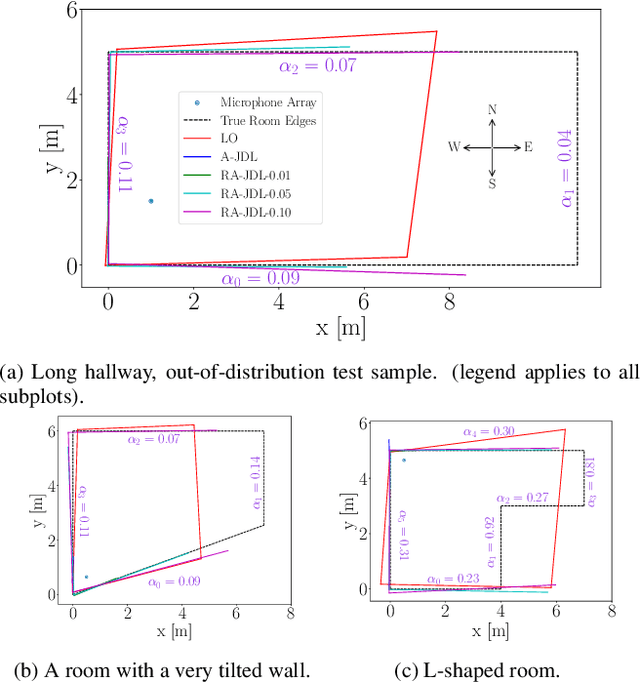

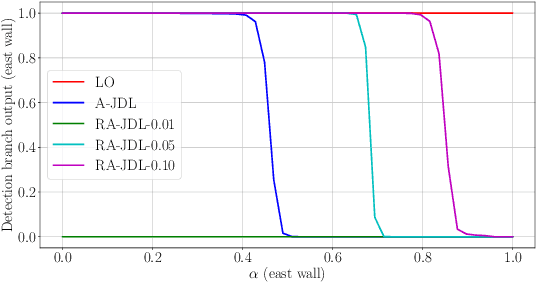

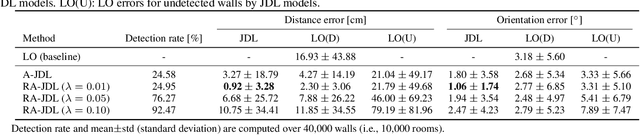

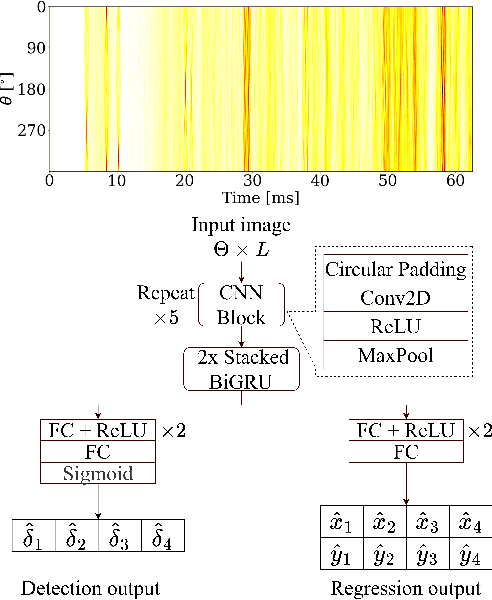

Room geometry inference algorithms rely on the localization of acoustic reflectors to identify boundary surfaces of an enclosure. Rooms with highly absorptive walls or walls at large distances from the measurement setup pose challenges for such algorithms. As it is not always possible to localize all walls, we present a data-driven method to jointly detect and localize acoustic reflectors that correspond to nearby and/or reflective walls. A multi-branch convolutional recurrent neural network is employed for this purpose. The network's input consists of a time-domain acoustic beamforming map, obtained via Radon transform from multi-channel room impulse responses. A modified loss function is proposed that forces the network to pay more attention to walls that can be estimated with a small error. Simulation results show that the proposed method can detect nearby and/or reflective walls and improve the localization performance for the detected walls.

Data-driven 3D Room Geometry Inference with a Linear Loudspeaker Array and a Single Microphone

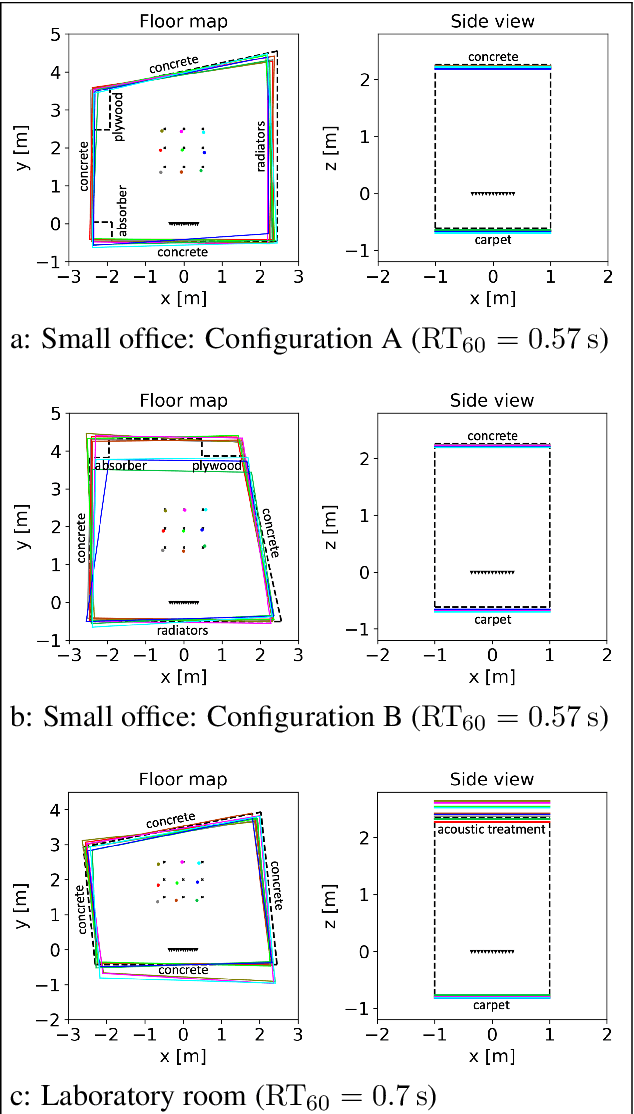

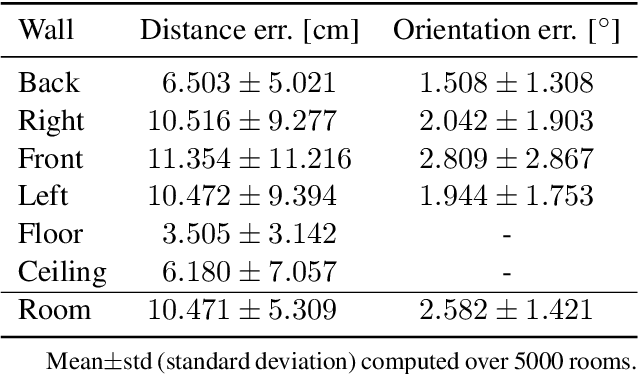

Knowing the room geometry may be very beneficial for many audio applications, including sound reproduction, acoustic scene analysis, and sound source localization. Room geometry inference (RGI) deals with the problem of reflector localization (RL) based on a set of room impulse responses (RIRs). Motivated by the increasing popularity of commercially available soundbars, this article presents a data-driven 3D RGI method using RIRs measured from a linear loudspeaker array to a single microphone. A convolutional recurrent neural network (CRNN) is trained using simulated RIRs in a supervised fashion for RL. The Radon transform, which is equivalent to delay-and-sum beamforming, is applied to multi-channel RIRs, and the resulting time-domain acoustic beamforming map is fed into the CRNN. The room geometry is inferred from the microphone position and the reflector locations estimated by the network. The results obtained using measured RIRs show that the proposed data-driven approach generalizes well to unseen RIRs and achieves an accuracy level comparable to a baseline model-driven RGI method that involves intermediate semi-supervised steps, thereby offering a unified and fully automated RGI framework.
