Modeling and Simulation of a Multi Robot System Architecture

A Multi Robot System (MRS) is the infrastructure of an intelligent cyberphysical system, where the robots understand the need of the human, and hence cooperate together to fulfill this need. Modeling an MRS is a crucial aspect of designing the proper system architecture, because this model can be used to simulate and measure the performance of the proposed architecture. However, an MRS solution architecture modeling is a very difficult problem, as it contains many dependent behaviors that dynamically change due to the current status of the overall system. In this paper, we introduce a general purpose MRS case study, where the humans initiate requests that are achieved by the available robots. These requests require different plans that use the current capabilities of the available robots. After proposing an architecture that defines the solution components, three steps are followed. First is modeling these components via Business Process Model and Notation (BPMN) language. BPMN provides a graphical notation to precisely represent the behaviors of every component, which is an essential need to model the solution. Second is to simulate these components behaviors and interaction in form of software agents. Java Agent DEvelopment (JADE) middleware has been used to develop and simulate the proposed model. JADE is based on a reactive agent approach, therefore it can dynamically represent the interaction among the solution components. Finally is to analyze the performance of the solution by defining a number of quantitative measurements, which can be obtained while simulating the system model in JADE middleware, therefore the solution can be analyzed and compared to another architecture.

Multi-Robot System Architecture design in SysML and BPMN

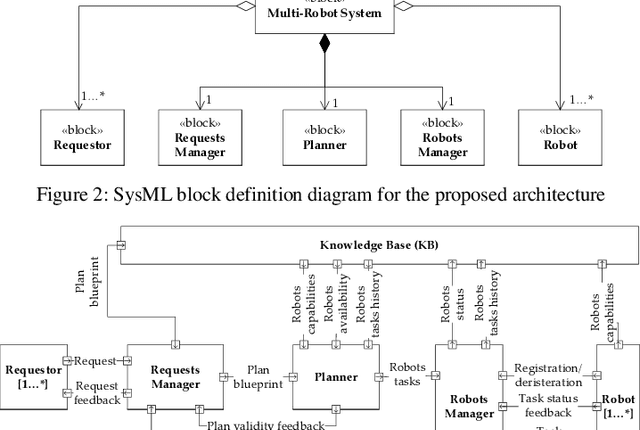

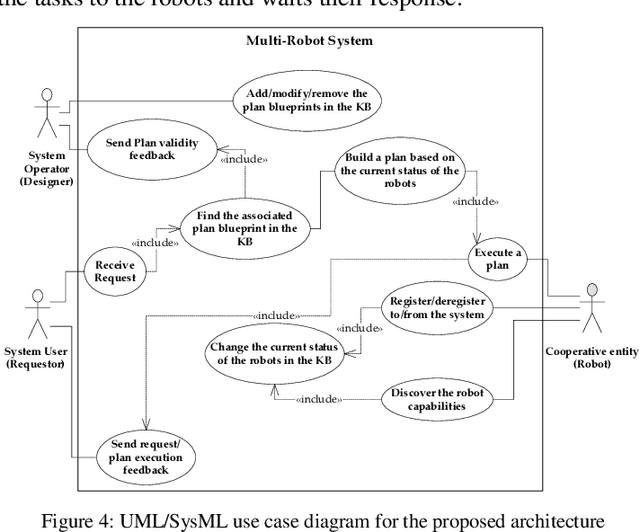

Multi-Robot System (MRS) is a complex system that contains many different software and hardware components. This main problem addressed in this article is the MRS design complexity. The proposed solution provides a modular modeling and simulation technique that is based on formal system engineering method, therefore the MRS design complexity is decomposed and reduced. Modeling the MRS has been achieved via two formal Architecture Description Languages (ADLs), which are Systems Modeling Language (SysML) and Business Process Model and Notation (BPMN), to design the system blueprints. By using those abstract design ADLs, the implementation of the project becomes technology agnostic. This allows to transfer the design concept from on programming language to another. During the simulation phase, a multi-agent environment is used to simulate the MRS blueprints. The simulation has been implemented in Java Agent Development (JADE) middleware. Therefore, its results can be used to analysis and verify the proposed MRS model in form of performance evaluation matrix.
