Abstract:Graphical models have proven to be powerful tools for representing high-dimensional systems of random variables. One example of such a model is the undirected graph, in which lack of an edge represents conditional independence between two random variables given the rest. Another example is the bidirected graph, in which absence of edges encodes pairwise marginal independence. Both of these classes of graphical models have been extensively studied, and while they are considered to be dual to one another, except in a few instances this duality has not been thoroughly investigated. In this paper, we demonstrate how duality between undirected and bidirected models can be used to transport results for one class of graphical models to the dual model in a transparent manner. We proceed to apply this technique to extend previously existing results as well as to prove new ones, in three important domains. First, we discuss the pairwise and global Markov properties for undirected and bidirected models, using the pseudographoid and reverse-pseudographoid rules which are weaker conditions than the typically used intersection and composition rules. Second, we investigate these pseudographoid and reverse pseudographoid rules in the context of probability distributions, using the concept of duality in the process. Duality allows us to quickly relate them to the more familiar intersection and composition properties. Third and finally, we apply the dualization method to understand the implications of faithfulness, which in turn leads to a more general form of an existing result.

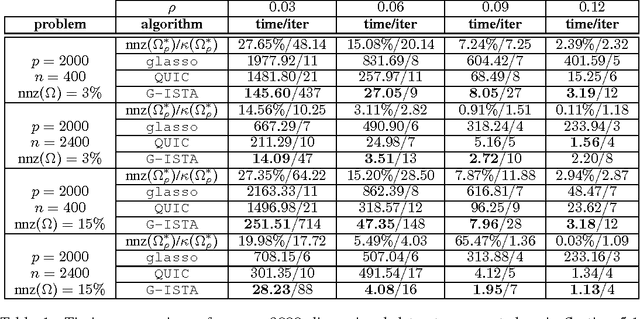

Abstract:The L1-regularized maximum likelihood estimation problem has recently become a topic of great interest within the machine learning, statistics, and optimization communities as a method for producing sparse inverse covariance estimators. In this paper, a proximal gradient method (G-ISTA) for performing L1-regularized covariance matrix estimation is presented. Although numerous algorithms have been proposed for solving this problem, this simple proximal gradient method is found to have attractive theoretical and numerical properties. G-ISTA has a linear rate of convergence, resulting in an O(log e) iteration complexity to reach a tolerance of e. This paper gives eigenvalue bounds for the G-ISTA iterates, providing a closed-form linear convergence rate. The rate is shown to be closely related to the condition number of the optimal point. Numerical convergence results and timing comparisons for the proposed method are presented. G-ISTA is shown to perform very well, especially when the optimal point is well-conditioned.

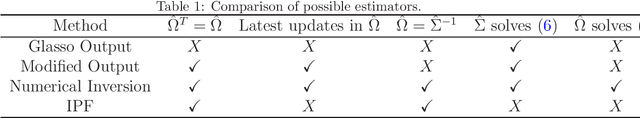

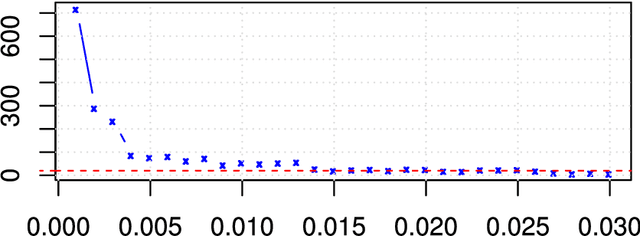

Abstract:The graphical lasso (glasso) is a widely-used fast algorithm for estimating sparse inverse covariance matrices. The glasso solves an L1 penalized maximum likelihood problem and is available as an R library on CRAN. The output from the glasso, a regularized covariance matrix estimate a sparse inverse covariance matrix estimate, not only identify a graphical model but can also serve as intermediate inputs into multivariate procedures such as PCA, LDA, MANOVA, and others. The glasso indeed produces a covariance matrix estimate which solves the L1 penalized optimization problem in a dual sense; however, the method for producing the inverse covariance matrix estimator after this optimization is inexact and may produce asymmetric estimates. This problem is exacerbated when the amount of L1 regularization that is applied is small, which in turn is more likely to occur if the true underlying inverse covariance matrix is not sparse. The lack of symmetry can potentially have consequences. First, it implies that the covariance and inverse covariance estimates are not numerical inverses of one another, and second, asymmetry can possibly lead to negative or complex eigenvalues,rendering many multivariate procedures which may depend on the inverse covariance estimator unusable. We demonstrate this problem, explain its causes, and propose possible remedies.
