Automatic Generators for a Family of Matrix Multiplication Routines with Apache TVM

We explore the utilization of the Apache TVM open source framework to automatically generate a family of algorithms that follow the approach taken by popular linear algebra libraries, such as GotoBLAS2, BLIS and OpenBLAS, in order to obtain high-performance blocked formulations of the general matrix multiplication (GEMM). % In addition, we fully automatize the generation process, by also leveraging the Apache TVM framework to derive a complete variety of the processor-specific micro-kernels for GEMM. This is in contrast with the convention in high performance libraries, which hand-encode a single micro-kernel per architecture using Assembly code. % In global, the combination of our TVM-generated blocked algorithms and micro-kernels for GEMM 1)~improves portability, maintainability and, globally, streamlines the software life cycle; 2)~provides high flexibility to easily tailor and optimize the solution to different data types, processor architectures, and matrix operand shapes, yielding performance on a par (or even superior for specific matrix shapes) with that of hand-tuned libraries; and 3)~features a small memory footprint.

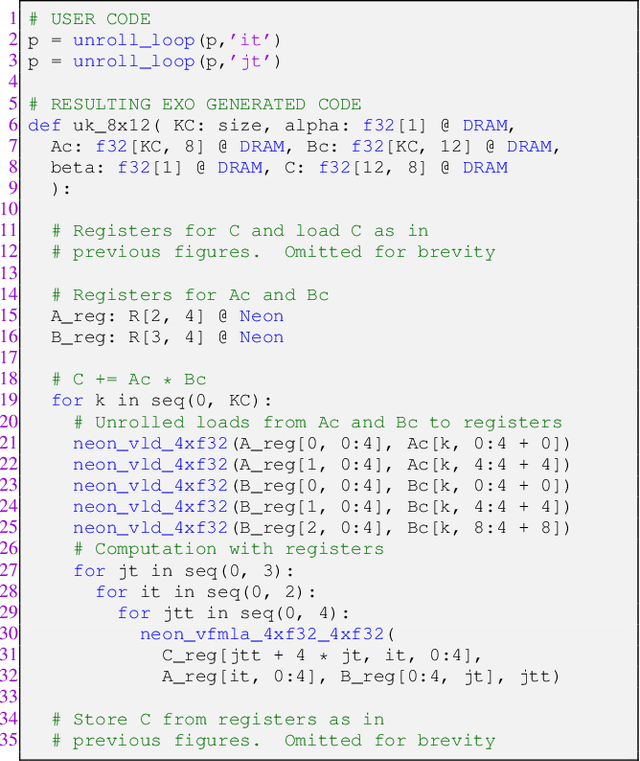

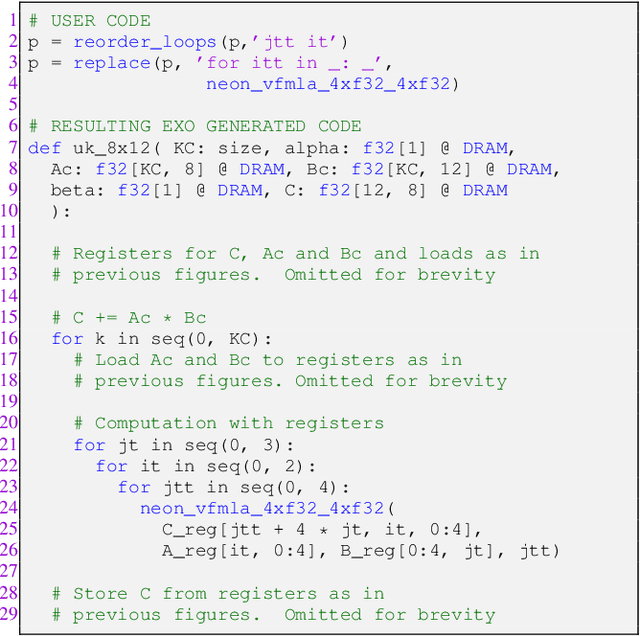

Tackling the Matrix Multiplication Micro-kernel Generation with Exo

The optimization of the matrix multiplication (or GEMM) has been a need during the last decades. This operation is considered the flagship of current linear algebra libraries such as BLIS, OpenBLAS, or Intel OneAPI because of its widespread use in a large variety of scientific applications. The GEMM is usually implemented following the GotoBLAS philosophy, which tiles the GEMM operands and uses a series of nested loops for performance improvement. These approaches extract the maximum computational power of the architectures through small pieces of hardware-oriented, high-performance code called micro-kernel. However, this approach forces developers to generate, with a non-negligible effort, a dedicated micro-kernel for each new hardware. In this work, we present a step-by-step procedure for generating micro-kernels with the Exo compiler that performs close to (or even better than) manually developed microkernels written with intrinsic functions or assembly language. Our solution also improves the portability of the generated code, since a hardware target is fully specified by a concise library-based description of its instructions.
