Perception, Control and Hardware for In-Hand Slip-Aware Object Manipulation with Parallel Grippers

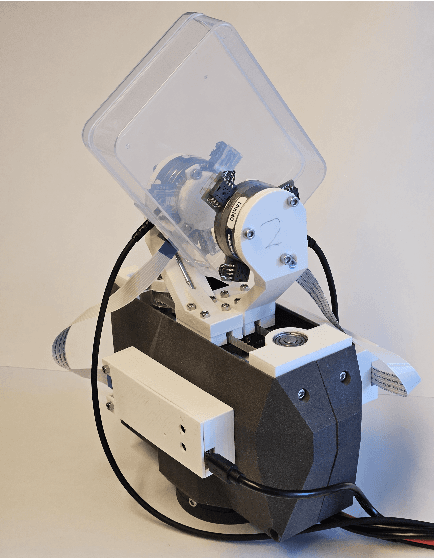

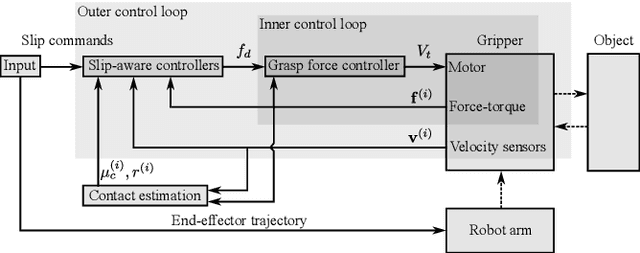

Dexterous in-hand manipulation offers significant potential to enhance robotic manipulator capabilities. This paper presents a comprehensive study on custom sensors and parallel gripper hardware specifically designed for in-hand slippage control. The gripper features rapid closed-loop, low-level force control, and is equipped with sensors capable of independently measuring contact forces and sliding velocities. Our system can quickly estimate essential object properties during pick-up using only in-hand sensing, without relying on prior object information. We introduce four distinct slippage controllers: gravity-assisted trajectory following for both rotational and linear slippage, a hinge controller that maintains the object's orientation while the gripper rotates, and a slip-avoidance controller. The system is mounted on a robot arm and validated through extensive experiments involving a diverse range of objects, demonstrating its novel capabilities.
