https://github.com/LimHyungTae/patchwork

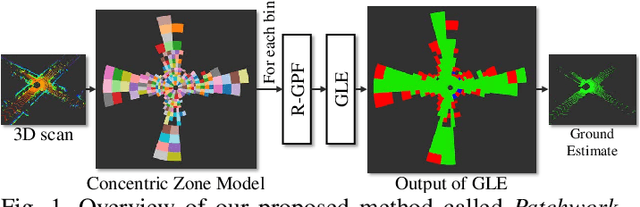

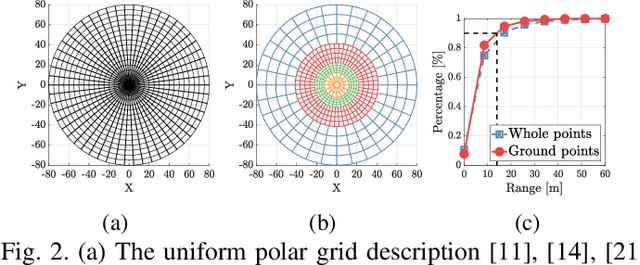

Ground segmentation is crucial for terrestrial mobile platforms to perform navigation or neighboring object recognition. Unfortunately, the ground is not flat, as it features steep slopes; bumpy roads; or objects, such as curbs, flower beds, and so forth. To tackle the problem, this paper presents a novel ground segmentation method called \textit{Patchwork}, which is robust for addressing the under-segmentation problem and operates at more than 40 Hz. In this paper, a point cloud is encoded into a Concentric Zone Model-based representation to assign an appropriate density of cloud points among bins in a way that is not computationally complex. This is followed by Region-wise Ground Plane Fitting, which is performed to estimate the partial ground for each bin. Finally, Ground Likelihood Estimation is introduced to dramatically reduce false positives. As experimentally verified on SemanticKITTI and rough terrain datasets, our proposed method yields promising performance compared with the state-of-the-art methods, showing faster speed compared with existing plane fitting--based methods. Code is available:
