Pack my weights and run! Minimizing overheads for in-memory computing accelerators

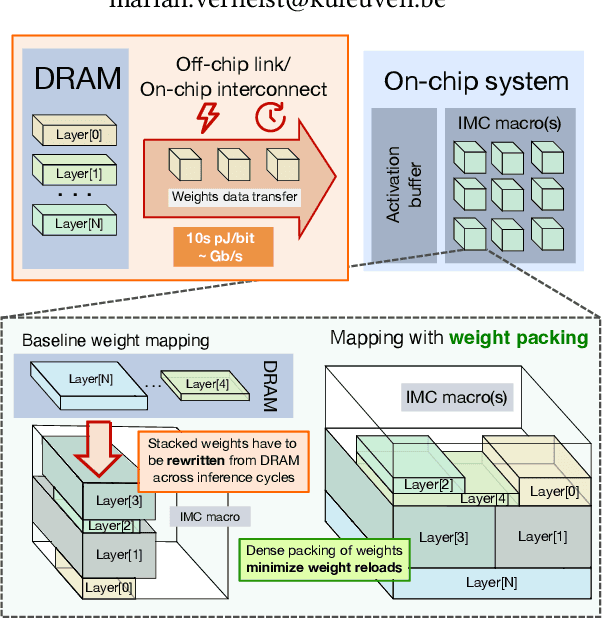

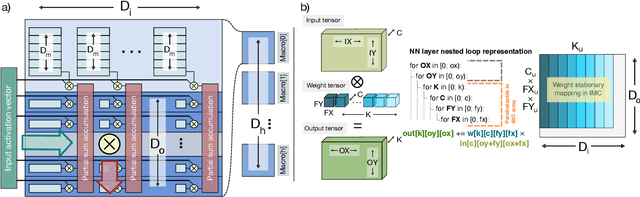

In-memory computing hardware accelerators allow more than 10x improvements in peak efficiency and performance for matrix-vector multiplications (MVM) compared to conventional digital designs. For this, they have gained great interest for the acceleration of neural network workloads. Nevertheless, these potential gains are only achieved when the utilization of the computational resources is maximized and the overhead from loading operands in the memory array minimized. To this aim, this paper proposes a novel mapping algorithm for the weights in the IMC macro, based on efficient packing of the weights of network layers in the available memory. The algorithm realizes 1) minimization of weight loading times while at the same time 2) maximally exploiting the parallelism of the IMC computational fabric. A set of case studies are carried out to show achievable trade-offs for the MLPerf Tiny benchmark \cite{mlperftiny} on IMC architectures, with potential $10-100\times$ EDP improvements.
