Improved low-count quantitative PET reconstruction with a variational neural network

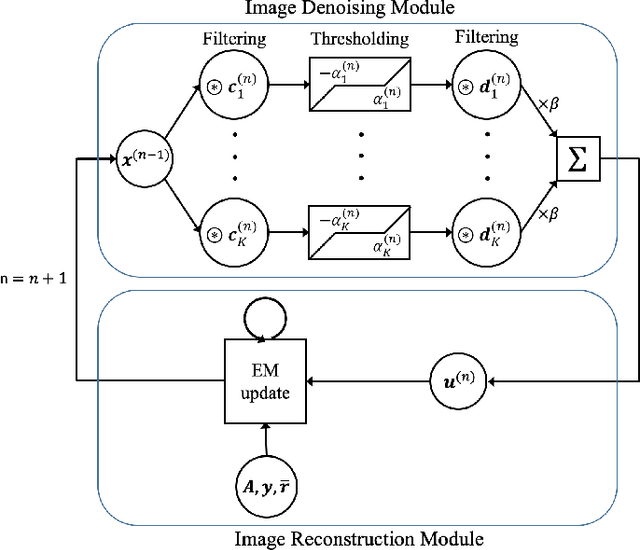

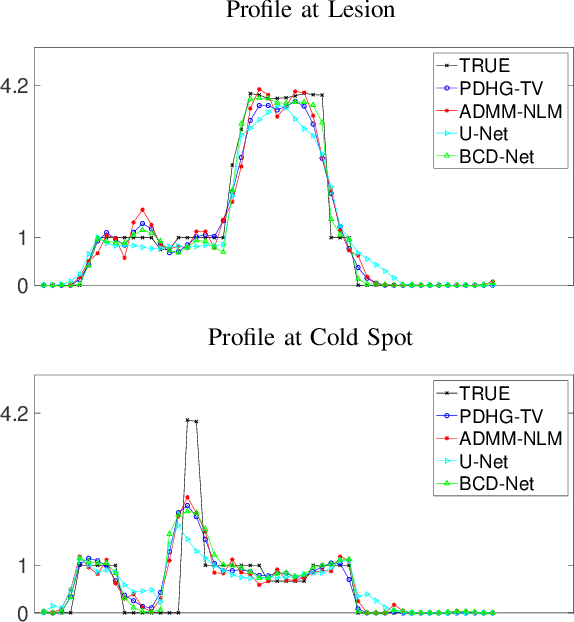

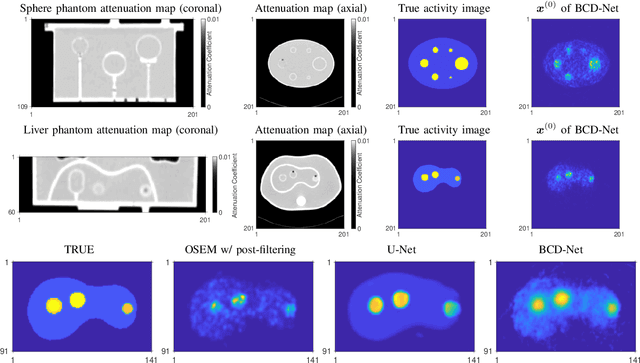

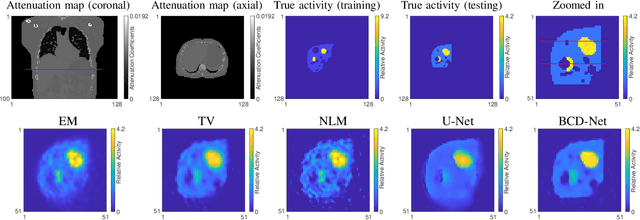

Image reconstruction in low-count PET is particularly challenging because gammas from natural radioactivity in Lu-based crystals cause high random fractions that lower the measurement signal-to-noise-ratio (SNR). In model-based image reconstruction (MBIR), using more iterations of an unregularized method may increase the noise, so incorporating regularization into the image reconstruction is desirable to control the noise. New regularization methods based on learned convolutional operators are emerging in MBIR. We modify the architecture of a variational neural network, BCD-Net, for PET MBIR, and demonstrate the efficacy of the trained BCD-Net using XCAT phantom data that simulates the low true coincidence count-rates with high random fractions typical for Y-90 PET patient imaging after Y-90 microsphere radioembolization. Numerical results show that the proposed BCD-Net significantly improves PET reconstruction performance compared to MBIR methods using non-trained regularizers, total variation (TV) and non-local means (NLM), and a non-MBIR method using a single forward pass deep neural network, U-Net. BCD-Net improved activity recovery for a hot sphere significantly and reduced noise, whereas non-trained regularizers had a trade-off between noise and quantification. BCD-Net improved CNR and RMSE by 43.4% (85.7%) and 12.9% (29.1%) compared to TV (NLM) regularized MBIR. Moreover, whereas the image reconstruction results show that the non-MBIR U-Net over-fits the training data, BCD-Net successfully generalizes to data that differs from training data. Improvements were also demonstrated for the clinically relevant phantom measurement data where we used training and testing datasets having very different activity distribution and count-level.
