Heatmap-based Vanishing Point boosts Lane Detection

Vision-based lane detection (LD) is a key part of autonomous driving technology, and it is also a challenging problem. As one of the important constraints of scene composition, vanishing point (VP) may provide a useful clue for lane detection. In this paper, we proposed a new multi-task fusion network architecture for high-precision lane detection. Firstly, the ERFNet was used as the backbone to extract the hierarchical features of the road image. Then, the lanes were detected using image segmentation. Finally, combining the output of lane detection and the hierarchical features extracted by the backbone, the lane VP was predicted using heatmap regression. The proposed fusion strategy was tested using the public CULane dataset. The experimental results suggest that the lane detection accuracy of our method outperforms those of state-of-the-art (SOTA) methods.

D-VPnet: A Network for Real-time Dominant Vanishing Point Detection in Natural Scenes

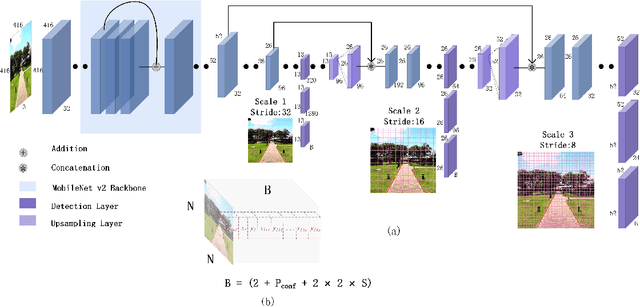

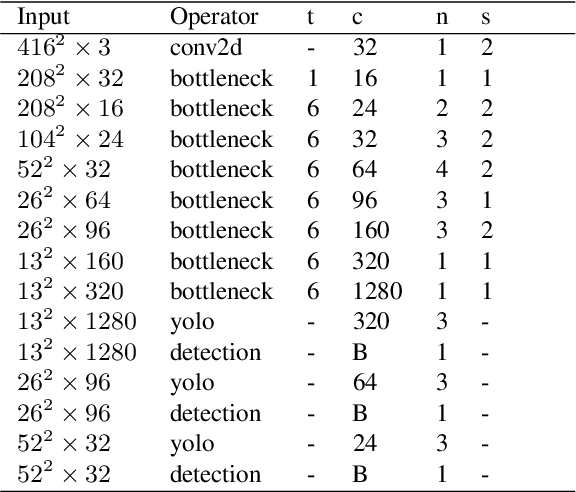

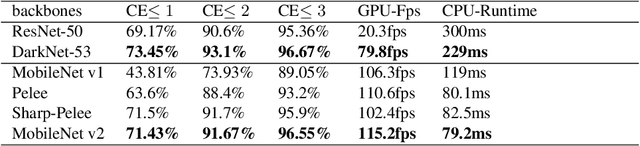

As an important part of linear perspective, vanishing points (VPs) provide useful clues for mapping objects from 2D photos to 3D space. Existing methods are mainly focused on extracting structural features such as lines or contours and then clustering these features to detect VPs. However, these techniques suffer from ambiguous information due to the large number of line segments and contours detected in outdoor environments. In this paper, we present a new convolutional neural network (CNN) to detect dominant VPs in natural scenes, i.e., the Dominant Vanishing Point detection Network (D-VPnet). The key component of our method is the feature line-segment proposal unit (FLPU), which can be directly utilized to predict the location of the dominant VP. Moreover, the model also uses the two main parallel lines as an assistant to determine the position of the dominant VP. The proposed method was tested using a public dataset and a Parallel Line based Vanishing Point (PLVP) dataset. The experimental results suggest that the detection accuracy of our approach outperforms those of state-of-the-art methods under various conditions in real-time, achieving rates of 115fps.

Unstructured Road Vanishing Point Detection Using the Convolutional Neural Network and Heatmap Regression

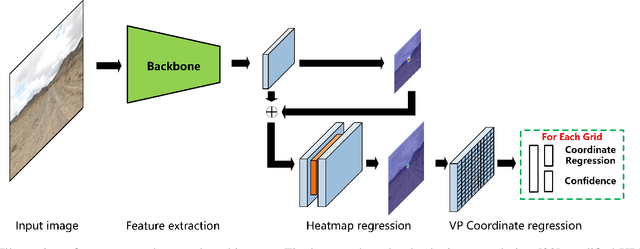

Unstructured road vanishing point (VP) detection is a challenging problem, especially in the field of autonomous driving. In this paper, we proposed a novel solution combining the convolutional neural network (CNN) and heatmap regression to detect unstructured road VP. The proposed algorithm firstly adopts a lightweight backbone, i.e., depthwise convolution modified HRNet, to extract hierarchical features of the unstructured road image. Then, three advanced strategies, i.e., multi-scale supervised learning, heatmap super-resolution, and coordinate regression techniques are utilized to achieve fast and high-precision unstructured road VP detection. The empirical results on Kong's dataset show that our proposed approach enjoys the highest detection accuracy compared with state-of-the-art methods under various conditions in real-time, achieving the highest speed of 33 fps.
