Non-sliced Optical Arbitrary Waveform Measurement (OAWM) Using a Silicon Photonic Receiver Chip

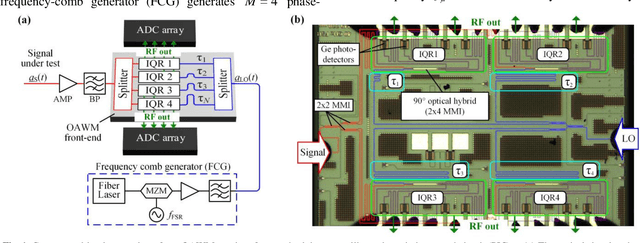

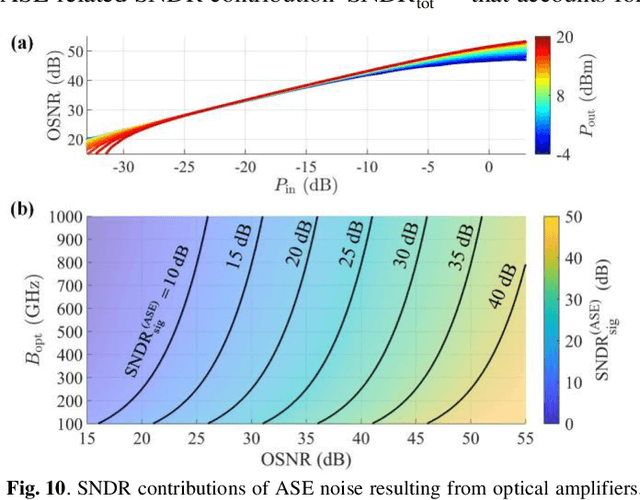

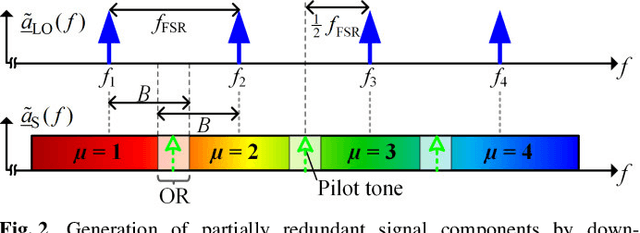

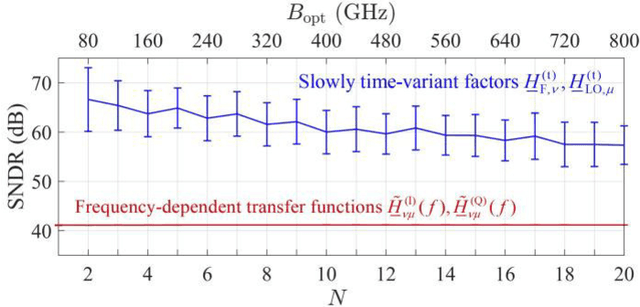

Comb-based optical arbitrary waveform measurement (OAWM) techniques can overcome the bandwidth limitations of conventional coherent detection schemes and may have disruptive impact on a wide range of scientific and industrial applications. Over the previous years, different OAWM schemes have been demonstrated, showing the performance and the application potential of the concept in laboratory experiments. However, these demonstrations still relied on discrete fiber-optic components or on combinations of discrete coherent receivers with integrated optical slicing filters that require complex tuning procedures to achieve the desired performance. In this paper, we demonstrate the first wavelength-agnostic OAWM front-end that is integrated on a compact silicon photonic chip and that neither requires slicing filters nor active controls. Our OAWM system comprises four IQ receivers, which are accurately calibrated using a femtosecond mode-locked laser and which offer a total acquisition bandwidth of 170 GHz. Using sinusoidal test signals, we measure a signal-to-noise-and-distortion ratio (SINAD) of 30 dB for the reconstructed signal, which corresponds to an effective number of bits (ENOB) of 4.7 bit, where the underlying electronic analog-to-digital converters (ADC) turn out to be the main limitation. The performance of the OAWM system is further demonstrated by receiving 64QAM data signals at symbol rates of up to 100 GBd, achieving constellation signal-to-noise ratios (CSNR) that are on par with those obtained for conventional coherent receivers. In a theoretical scalability analysis, we show that increasing the channel count of non-sliced OAWM systems can improve both the acquisition bandwidth and the signal quality. We believe that our work represents a key step towards out-of-lab use of highly compact OAWM systems that rely on chip-scale integrated optical front-ends.

Slice-Less Optical Arbitrary Waveform Measurement (OAWM) in a Bandwidth of More than 600 GHz Using Soliton Microcombs

We propose and demonstrate a novel scheme for optical arbitrary waveform measurement (OAWM) that exploits chip-scale Kerr soliton combs as highly scalable multiwavelength local oscillators (LO) for ultra-broadband full-field waveform acquisition. In contrast to earlier concepts, our approach does not require any optical slicing filters and thus lends itself to efficient implementation on state-of-the-art high-index-contrast integration platforms such as silicon photonics. The scheme allows to measure truly arbitrary waveforms with high accuracy, based on a dedicated system model which is calibrated by means of a femtosecond laser with known pulse shape. We demonstrated the viability of the approach in a proof-of-concept experiment by capturing an optical waveform that contains multiple 16 QAM and 64 QAM wavelength-division multiplexed (WDM) data signals with symbol rates of up to 80 GBd, reaching overall line rates of up to 1.92 Tbit/s within an optical acquisition bandwidth of 610 GHz. To the best of our knowledge, this is the highest bandwidth that has so far been demonstrated in an OAWM experiment.
