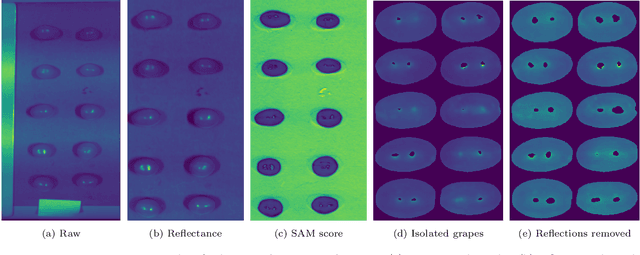

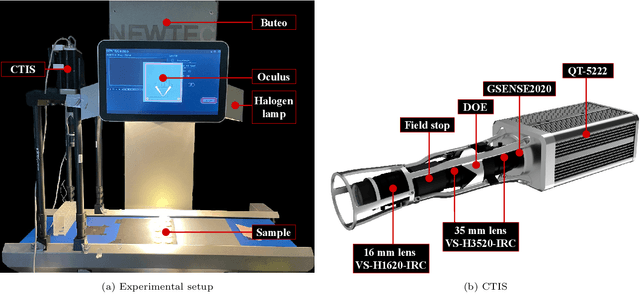

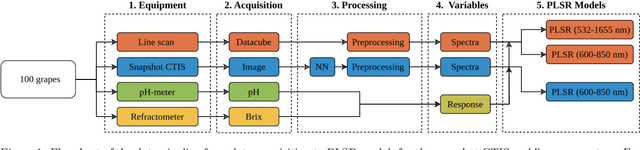

Investigating the Applicability of a Snapshot Computed Tomography Imaging Spectrometer for the Prediction of Brix and pH of Grapes

In this paper, a recently developed snapshot hyperspectral imaging (HSI) system based on Computed Tomography Imaging Spectroscopy (CTIS) is utilized to determine Brix and pH values in Sheegene 20 table grapes through Partial Least Squares Regression (PLSR) modeling. The performance of the CTIS system is compared with that of a state-of-the-art line scan HSI system by imaging 100 grapes across both platforms. Reference measurements of Brix and pH values are obtained directly using a refractometer and a pH meter, as these parameters are essential for assessing the quality of table and wine grapes. The findings indicate that the spectra captured by the CTIS camera correlate well with the reference measurements, despite the system's narrower spectral range. The CTIS camera's advantages, including its lower cost, portability, and reduced susceptibility to motion errors, highlight its potential for promising in-field applications in grape quality assessment.

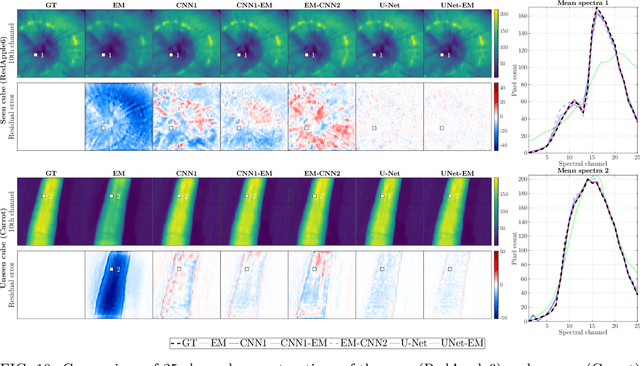

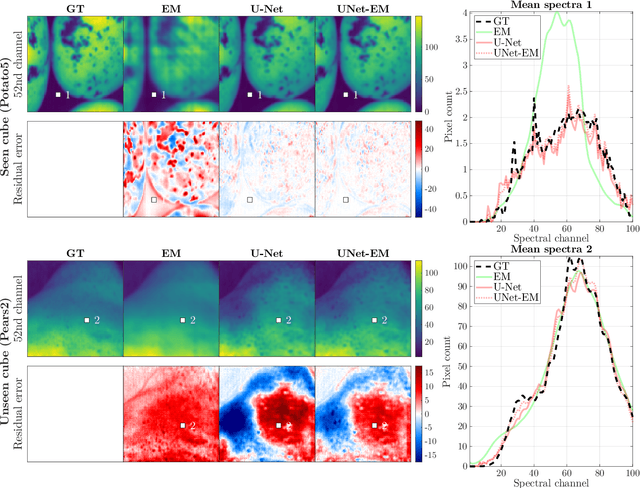

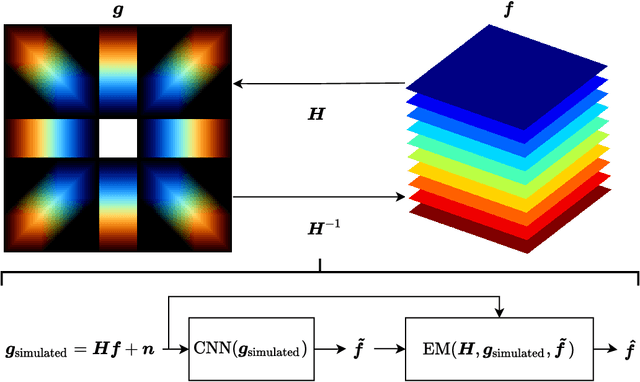

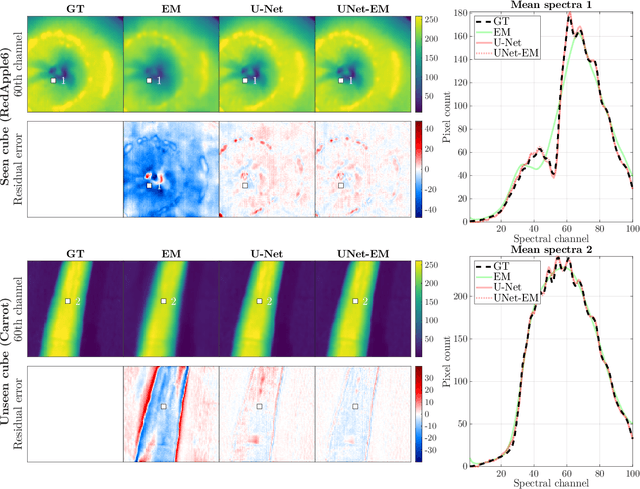

The hybrid approach -- Convolutional Neural Networks and Expectation Maximization Algorithm -- for Tomographic Reconstruction of Hyperspectral Images

We present a simple but novel hybrid approach to hyperspectral data cube reconstruction from computed tomography imaging spectrometry (CTIS) images that sequentially combines neural networks and the iterative Expectation Maximization (EM) algorithm. We train and test the ability of the method to reconstruct data cubes of $100\times100\times25$ and $100\times100\times100$ voxels, corresponding to 25 and 100 spectral channels, from simulated CTIS images generated by our CTIS simulator. The hybrid approach utilizes the inherent strength of the Convolutional Neural Network (CNN) with regard to noise and its ability to yield consistent reconstructions and make use of the EM algorithm's ability to generalize to spectral images of any object without training. The hybrid approach achieves better performance than both the CNNs and EM alone for seen (included in CNN training) and unseen (excluded from CNN training) cubes for both the 25- and 100-channel cases. For the 25 spectral channels, the improvements from CNN to the hybrid model (CNN + EM) in terms of the mean-squared errors are between 14-26%. For 100 spectral channels, the improvements between 19-40% are attained with the largest improvement of 40% for the unseen data, to which the CNNs are not exposed during the training.

The Application of Convolutional Neural Networks for Tomographic Reconstruction of Hyperspectral Images

A novel method, utilizing convolutional neural networks (CNNs), is proposed to reconstruct hyperspectral cubes from computed tomography imaging spectrometer (CTIS) images. Current reconstruction algorithms are usually subject to long reconstruction times and mediocre precision in cases of a large number of spectral channels. The constructed CNNs deliver higher precision and shorter reconstruction time than a standard expectation maximization algorithm. In addition, the network can handle two different types of real-world images at the same time -- specifically ColorChecker and carrot spectral images are considered. This work paves the way toward real-time reconstruction of hyperspectral cubes from CTIS images.
