BILLNET: A Binarized Conv3D-LSTM Network with Logic-gated residual architecture for hardware-efficient video inference

Long Short-Term Memory (LSTM) and 3D convolution (Conv3D) show impressive results for many video-based applications but require large memory and intensive computing. Motivated by recent works on hardware-algorithmic co-design towards efficient inference, we propose a compact binarized Conv3D-LSTM model architecture called BILLNET, compatible with a highly resource-constrained hardware. Firstly, BILLNET proposes to factorize the costly standard Conv3D by two pointwise convolutions with a grouped convolution in-between. Secondly, BILLNET enables binarized weights and activations via a MUX-OR-gated residual architecture. Finally, to efficiently train BILLNET, we propose a multi-stage training strategy enabling to fully quantize LSTM layers. Results on Jester dataset show that our method can obtain high accuracy with extremely low memory and computational budgets compared to existing Conv3D resource-efficient models.

MOGNET: A Mux-residual quantized Network leveraging Online-Generated weights

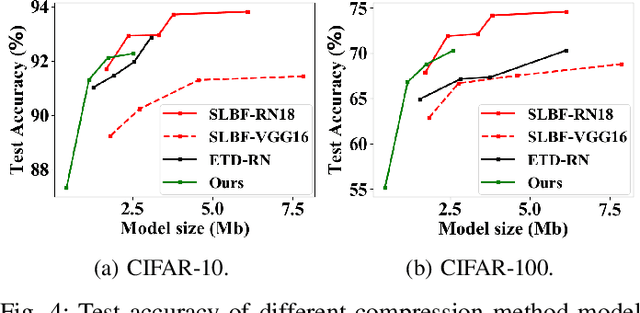

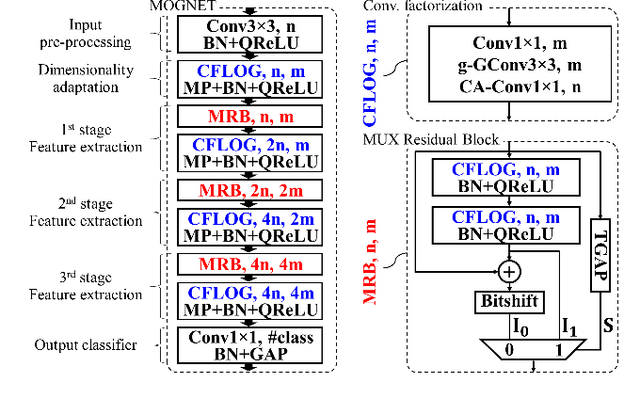

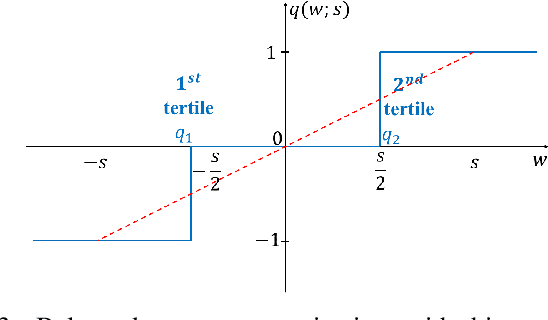

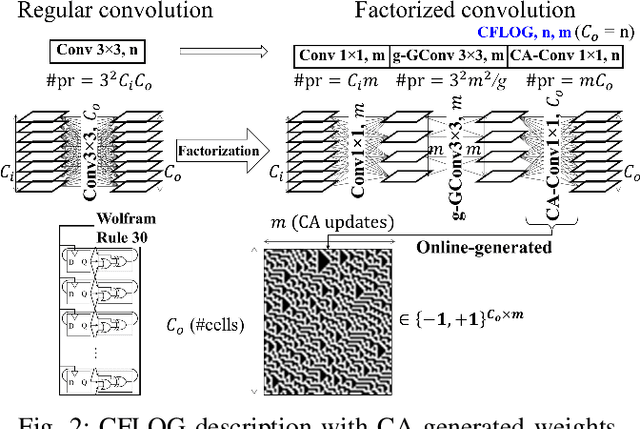

This paper presents a compact model architecture called MOGNET, compatible with a resource-limited hardware. MOGNET uses a streamlined Convolutional factorization block based on a combination of 2 point-wise (1x1) convolutions with a group-wise convolution in-between. To further limit the overall model size and reduce the on-chip required memory, the second point-wise convolution's parameters are on-line generated by a Cellular Automaton structure. In addition, MOGNET enables the use of low-precision weights and activations, by taking advantage of a Multiplexer mechanism with a proper Bitshift rescaling for integrating residual paths without increasing the hardware-related complexity. To efficiently train this model we also introduce a novel weight ternarization method favoring the balance between quantized levels. Experimental results show that given tiny memory budget (sub-2Mb), MOGNET can achieve higher accuracy with a clear gap up to 1% at a similar or even lower model size compared to recent state-of-the-art methods.

A 1Mb mixed-precision quantized encoder for image classification and patch-based compression

Even if Application-Specific Integrated Circuits (ASIC) have proven to be a relevant choice for integrating inference at the edge, they are often limited in terms of applicability. In this paper, we demonstrate that an ASIC neural network accelerator dedicated to image processing can be applied to multiple tasks of different levels: image classification and compression, while requiring a very limited hardware. The key component is a reconfigurable, mixed-precision (3b/2b/1b) encoder that takes advantage of proper weight and activation quantizations combined with convolutional layer structural pruning to lower hardware-related constraints (memory and computing). We introduce an automatic adaptation of linear symmetric quantizer scaling factors to perform quantized levels equalization, aiming at stabilizing quinary and ternary weights training. In addition, a proposed layer-shared Bit-Shift Normalization significantly simplifies the implementation of the hardware-expensive Batch Normalization. For a specific configuration in which the encoder design only requires 1Mb, the classification accuracy reaches 87.5% on CIFAR-10. Besides, we also show that this quantized encoder can be used to compress image patch-by-patch while the reconstruction can performed remotely, by a dedicated full-frame decoder. This solution typically enables an end-to-end compression almost without any block artifacts, outperforming patch-based state-of-the-art techniques employing a patch-constant bitrate.

Histogram-Equalized Quantization for logic-gated Residual Neural Networks

Adjusting the quantization according to the data or to the model loss seems mandatory to enable a high accuracy in the context of quantized neural networks. This work presents Histogram-Equalized Quantization (HEQ), an adaptive framework for linear symmetric quantization. HEQ automatically adapts the quantization thresholds using a unique step size optimization. We empirically show that HEQ achieves state-of-the-art performances on CIFAR-10. Experiments on the STL-10 dataset even show that HEQ enables a proper training of our proposed logic-gated (OR, MUX) residual networks with a higher accuracy at a lower hardware complexity than previous work.
