On topological data analysis for SHM; an introduction to persistent homology

This paper aims to discuss a method of quantifying the 'shape' of data, via a methodology called topological data analysis. The main tool within topological data analysis is persistent homology; this is a means of measuring the shape of data, from the homology of a simplicial complex, calculated over a range of values. The required background theory and a method of computing persistent homology is presented here, with applications specific to structural health monitoring. These results allow for topological inference and the ability to deduce features in higher-dimensional data, that might otherwise be overlooked. A simplicial complex is constructed for data for a given distance parameter. This complex encodes information about the local proximity of data points. A singular homology value can be calculated from this simplicial complex. Extending this idea, the distance parameter is given for a range of values, and the homology is calculated over this range. The persistent homology is a representation of how the homological features of the data persist over this interval. The result is characteristic to the data. A method that allows for the comparison of the persistent homology for different data sets is also discussed.

On topological data analysis for structural dynamics: an introduction to persistent homology

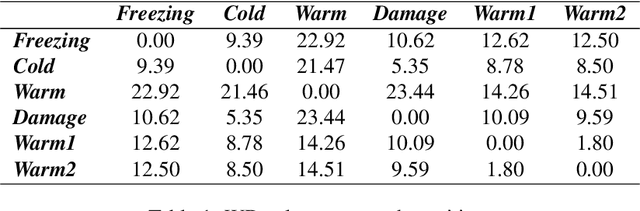

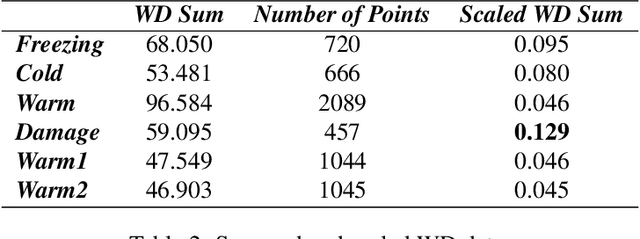

Topological methods can provide a way of proposing new metrics and methods of scrutinising data, that otherwise may be overlooked. In this work, a method of quantifying the shape of data, via a topic called topological data analysis will be introduced. The main tool within topological data analysis (TDA) is persistent homology. Persistent homology is a method of quantifying the shape of data over a range of length scales. The required background and a method of computing persistent homology is briefly discussed in this work. Ideas from topological data analysis are then used for nonlinear dynamics to analyse some common attractors, by calculating their embedding dimension, and then to assess their general topologies. A method will also be proposed, that uses topological data analysis to determine the optimal delay for a time-delay embedding. TDA will also be applied to a Z24 Bridge case study in structural health monitoring, where it will be used to scrutinise different data partitions, classified by the conditions at which the data were collected. A metric, from topological data analysis, is used to compare data between the partitions. The results presented demonstrate that the presence of damage alters the manifold shape more significantly than the effects present from temperature.
