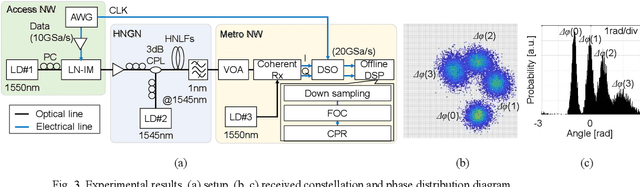

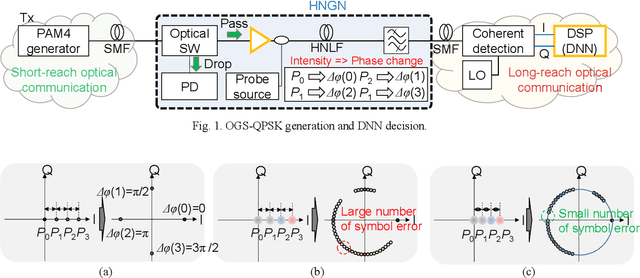

Abstract:An optical gateway to convert four-level pulse amplitude modulation to quadrature phase shift keying modulation format having shaping gain was proposed for flexible intensity to phase mapping which exploits non-uniform phase noise. The power consumption of the optical modulation format conversion can save by making a DNN-based decision on the receiver side for the generated QPSK signal with non-uniform phase noise. A proof-of-principle experiment has shown that an optically geometric constellation shaped QPSK modulated signals generated from regular PAM4 signals with Gaussian-distributed noise. The shaped QPSK signal shows BER and generalized mutual information improvement by 1dB gain through the use of digital neural network signal recovery.
