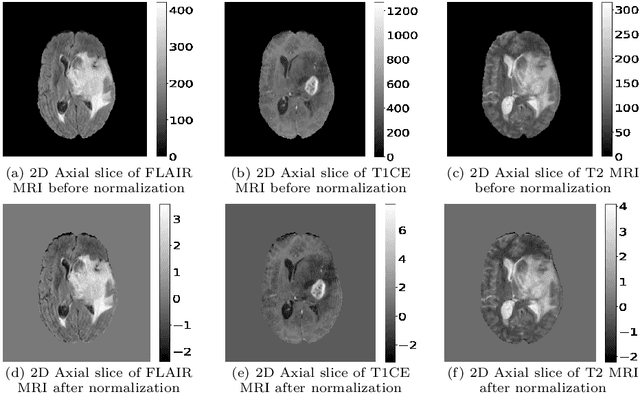

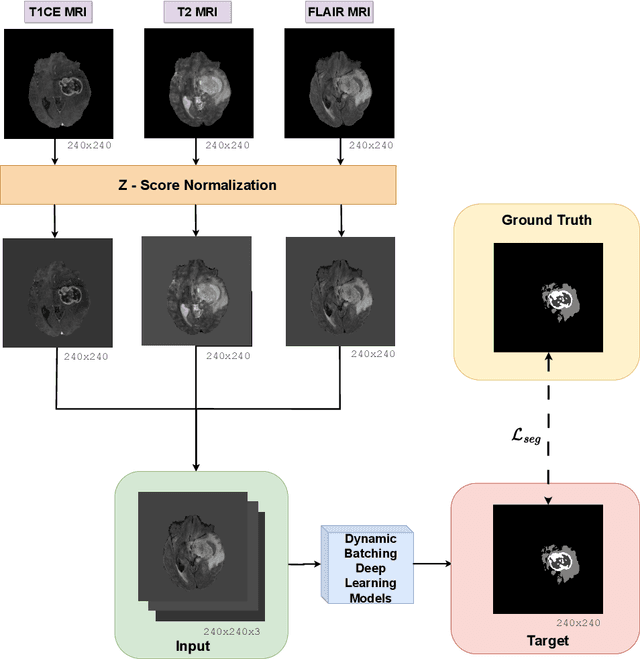

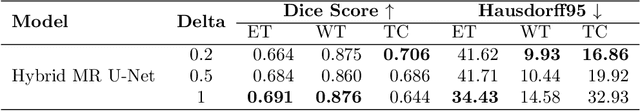

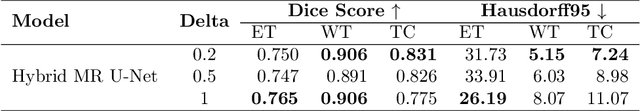

Detection of Under-represented Samples Using Dynamic Batch Training for Brain Tumor Segmentation from MR Images

Brain tumors in magnetic resonance imaging (MR) are difficult, time-consuming, and prone to human error. These challenges can be resolved by developing automatic brain tumor segmentation methods from MR images. Various deep-learning models based on the U-Net have been proposed for the task. These deep-learning models are trained on a dataset of tumor images and then used for segmenting the masks. Mini-batch training is a widely used method in deep learning for training. However, one of the significant challenges associated with this approach is that if the training dataset has under-represented samples or samples with complex latent representations, the model may not generalize well to these samples. The issue leads to skewed learning of the data, where the model learns to fit towards the majority representations while underestimating the under-represented samples. The proposed dynamic batch training method addresses the challenges posed by under-represented data points, data points with complex latent representation, and imbalances within the class, where some samples may be harder to learn than others. Poor performance of such samples can be identified only after the completion of the training, leading to the wastage of computational resources. Also, training easy samples after each epoch is an inefficient utilization of computation resources. To overcome these challenges, the proposed method identifies hard samples and trains such samples for more iterations compared to easier samples on the BraTS2020 dataset. Additionally, the samples trained multiple times are identified and it provides a way to identify hard samples in the BraTS2020 dataset. The comparison of the proposed training approach with U-Net and other models in the literature highlights the capabilities of the proposed training approach.

Integrating Edge Information into Ground Truth for the Segmentation of the Optic Disc and Cup from Fundus Images

Optic disc and cup segmentation helps in the diagnosis of glaucoma, myocardial infarction, and diabetic retinopathy. Most deep learning methods developed to perform segmentation tasks are built on top of a U-Net-based model architecture. Nevertheless, U-Net and its variants have a tendency to over-segment/ under-segment the required regions of interest. Since the most important outcome is the value of cup-to-disc ratio and not the segmented regions themselves, we are more concerned about the boundaries rather than the regions under the boundaries. This makes learning edges important as compared to learning the regions. In the proposed work, the authors aim to extract both edges of the optic disc and cup from the ground truth using a Laplacian filter. Next, edges are reconstructed to obtain an edge ground truth in addition to the optic disc-cup ground truth. Utilizing both ground truths, the authors study several U-Net and its variant architectures with and without optic disc and cup edges as target, along with the optic disc-cup ground truth for segmentation. The authors have used the REFUGE benchmark dataset and the Drishti-GS dataset to perform the study, and the results are tabulated for the dice and the Hausdorff distance metrics. In the case of the REFUGE dataset, the optic disc mean dice score has improved from 0.7425 to 0.8859 while the mean Hausdorff distance has reduced from 6.5810 to 3.0540 for the baseline U-Net model. Similarly, the optic cup mean dice score has improved from 0.6970 to 0.8639 while the mean Hausdorff distance has reduced from 5.2340 to 2.6323 for the same model. Similar improvement has been observed for the Drishti-GS dataset as well. Compared to the baseline U-Net and its variants (i.e) the Attention U-Net and the U-Net++, the models that learn integrated edges along with the optic disc and cup regions performed well in both validation and testing datasets.

Integrating Edges into U-Net Models with Explainable Activation Maps for Brain Tumor Segmentation using MR Images

Manual delineation of tumor regions from magnetic resonance (MR) images is time-consuming, requires an expert, and is prone to human error. In recent years, deep learning models have been the go-to approach for the segmentation of brain tumors. U-Net and its' variants for semantic segmentation of medical images have achieved good results in the literature. However, U-Net and its' variants tend to over-segment tumor regions and may not accurately segment the tumor edges. The edges of the tumor are as important as the tumor regions for accurate diagnosis, surgical precision, and treatment planning. In the proposed work, the authors aim to extract edges from the ground truth using a derivative-like filter followed by edge reconstruction to obtain an edge ground truth in addition to the brain tumor ground truth. Utilizing both ground truths, the author studies several U-Net and its' variant architectures with and without tumor edges ground truth as a target along with the tumor ground truth for brain tumor segmentation. The author used the BraTS2020 benchmark dataset to perform the study and the results are tabulated for the dice and Hausdorff95 metrics. The mean and median metrics are calculated for the whole tumor (WT), tumor core (TC), and enhancing tumor (ET) regions. Compared to the baseline U-Net and its variants, the models that learned edges along with the tumor regions performed well in core tumor regions in both training and validation datasets. The improved performance of edge-trained models trained on baseline models like U-Net and V-Net achieved performance similar to baseline state-of-the-art models like Swin U-Net and hybrid MR-U-Net. The edge-target trained models are capable of generating edge maps that can be useful for treatment planning. Additionally, for further explainability of the results, the activation map generated by the hybrid MR-U-Net has been studied.

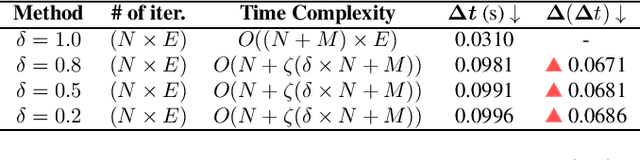

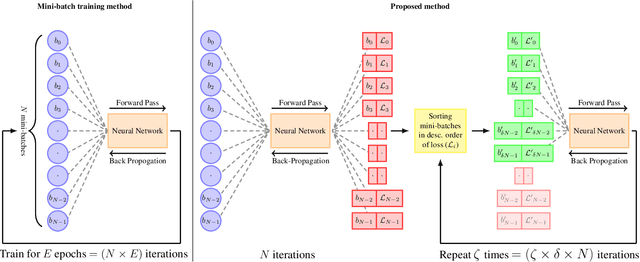

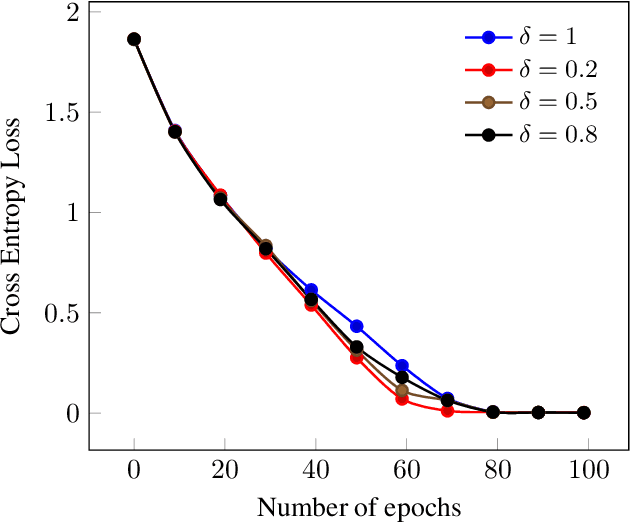

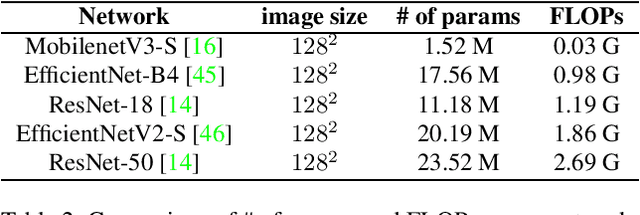

Can we learn better with hard samples?

In deep learning, mini-batch training is commonly used to optimize network parameters. However, the traditional mini-batch method may not learn the under-represented samples and complex patterns in the data, leading to a longer time for generalization. To address this problem, a variant of the traditional algorithm has been proposed, which trains the network focusing on mini-batches with high loss. The study evaluates the effectiveness of the proposed training using various deep neural networks trained on three benchmark datasets (CIFAR-10, CIFAR-100, and STL-10). The deep neural networks used in the study are ResNet-18, ResNet-50, Efficient Net B4, EfficientNetV2-S, and MobilenetV3-S. The experimental results showed that the proposed method can significantly improve the test accuracy and speed up the convergence compared to the traditional mini-batch training method. Furthermore, we introduce a hyper-parameter delta ({\delta}) that decides how many mini-batches are considered for training. Experiments on various values of {\delta} found that the performance of the proposed method for smaller {\delta} values generally results in similar test accuracy and faster generalization. We show that the proposed method generalizes in 26.47% less number of epochs than the traditional mini-batch method in EfficientNet-B4 on STL-10. The proposed method also improves the test top-1 accuracy by 7.26% in ResNet-18 on CIFAR-100.
