Computational ghost imaging with hybrid transforms by integrating Hadamard, discrete cosine, and Haar matrices

A scenario of ghost imaging with hybrid transform approach is proposed by integrating Hadamard, discrete cosine, and Haar matrices. The measurement matrix is formed by the Kronecker product of the two different transform matrices. The image information can be conveniently reconstructed by the corresponding inverse matrices. In experiment, six hybridization sets are performed in computational ghost imaging. For an object of staggered stripes, only one bucket signal survives in the Hadamard-cosine, Haar-Hadamard, and Haar-cosine hybridization sets, demonstrating flexible image compression. For a handmade windmill object, the quality factors of the reconstructed images vary with the hybridization sets. Sub-Nyquist sampling can be applied to either or both of the different transform matrices in each hybridization set in experiment. The hybridization method can be extended to apply more transforms at once. Ghost imaging with hybrid transforms may find flexible applications in image processing, such as image compression and image encryption.

Complex-amplitude Fourier single-pixel imaging via coherent structured illumination

We propose a method of complex-amplitude Fourier single-pixel imaging (CFSI) with coherent structured illumination to acquire both the amplitude and phase of an object. In the proposed method, an object is illustrated by a series of coherent structured light fields which are generated by a phase-only spatial light modulator, the complex Fourier spectrum of the object can be acquired sequentially by a single-pixel photodetector. Then the desired complex-amplitude image can be retrieved directly by applying an inverse Fourier transform. We experimentally implemented this CFSI with several different types of objects. The experimental results show that the proposed method provides a promising complex-amplitude imaging approach with high quality and a stable configuration. Thus, it might find broad applications in optical metrology and biomedical science.

Full-color photon-counting single-pixel imaging

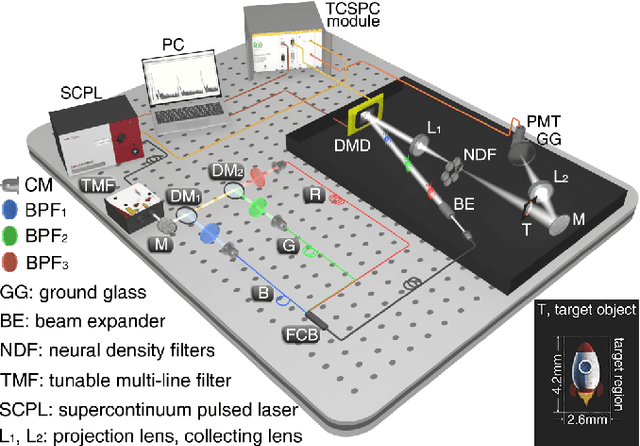

We propose and experimentally demonstrate a high-efficiency single-pixel imaging (SPI) scheme by integrating time-correlated single-photon counting (TCSPC) with time-division multiplexing to acquire full-color images at extremely low light level. This SPI scheme uses a digital micromirror device to modulate a sequence of laser pulses with preset delays to achieve three-color structured illumination, then employs a photomultiplier tube into the TCSPC module to achieve photon-counting detection. By exploiting the time-resolved capabilities of TCSPC, we demodulate the spectrum-image-encoded signals, and then reconstruct high-quality full-color images in a single-round of measurement. Based on this scheme, the strategies such as single-step measurement, high-speed projection, and undersampling can further improve the imaging efficiency.
