Identifying Topology of Power Distribution Networks Based on Smart Meter Data

In a power distribution network, the network topology information is essential for an efficient operation of the network. This information of network connectivity is not accurately available, at the low voltage level, due to uninformed changes that happen from time to time. In this paper, we propose a novel data--driven approach to identify the underlying network topology including the load phase connectivity from time series of energy measurements. The proposed method involves the application of Principal Component Analysis (PCA) and its graph-theoretic interpretation to infer the topology from smart meter energy measurements. The method is demonstrated through simulation on randomly generated networks and also on IEEE recognized Roy Billinton distribution test system.

A Novel Approach for Phase Identification in Smart Grids Using Graph Theory and Principal Component Analysis

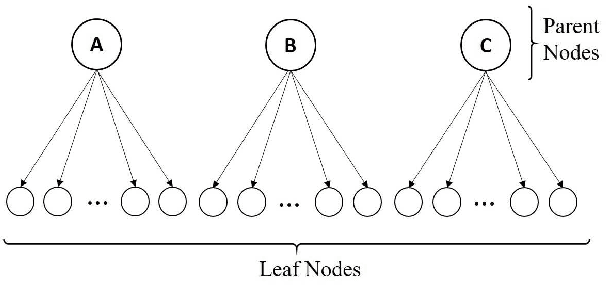

Consumers with low demand, like households, are generally supplied single-phase power by connecting their service mains to one of the phases of a distribution transformer. The distribution companies face the problem of keeping a record of consumer connectivity to a phase due to uninformed changes that happen. The exact phase connectivity information is important for the efficient operation and control of distribution system. We propose a new data driven approach to the problem based on Principal Component Analysis (PCA) and its Graph Theoretic interpretations, using energy measurements in equally timed short intervals, generated from smart meters. We propose an algorithm for inferring phase connectivity from noisy measurements. The algorithm is demonstrated using simulated data for phase connectivities in distribution networks.
