Abstract:Partitioning is a known problem in computer science and is critical in chip design workflows, as advancements in this area can significantly influence design quality and efficiency. Deep Learning (DL) techniques, particularly those involving Graph Neural Networks (GNNs), have demonstrated strong performance in various node, edge, and graph prediction tasks using both inductive and transductive learning methods. A notable area of recent interest within GNNs are pooling layers and their application to graph partitioning. While these methods have yielded promising results across social, computational, and other random graphs, their effectiveness has not yet been explored in the context of VLSI hypergraph netlists. In this study, we introduce a new set of synthetic partitioning benchmarks that emulate real-world netlist characteristics and possess a known upper bound for solution cut quality. We distinguish these benchmarks with the prior work and evaluate existing state-of-the-art partitioning algorithms alongside GNN-based approaches, highlighting their respective advantages and disadvantages.

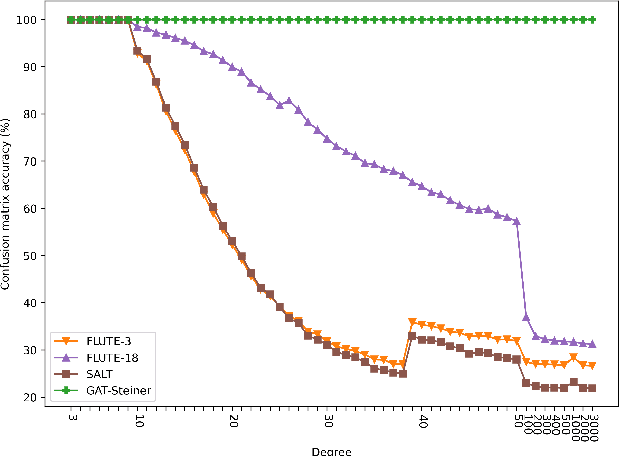

Abstract:The Rectilinear Steiner Minimum Tree (RSMT) problem is a fundamental problem in VLSI placement and routing and is known to be NP-hard. Traditional RSMT algorithms spend a significant amount of time on finding Steiner points to reduce the total wire length or use heuristics to approximate producing sub-optimal results. We show that Graph Neural Networks (GNNs) can be used to predict optimal Steiner points in RSMTs with high accuracy and can be parallelized on GPUs. In this paper, we propose GAT-Steiner, a graph attention network model that correctly predicts 99.846% of the nets in the ISPD19 benchmark with an average increase in wire length of only 0.480% on suboptimal wire length nets. On randomly generated benchmarks, GAT-Steiner correctly predicts 99.942% with an average increase in wire length of only 0.420% on suboptimal wire length nets.
