A Hybrid Deep-Learning Model for El Niño Southern Oscillation in the Low-Data Regime

While deep-learning models have demonstrated skillful El Ni\~no Southern Oscillation (ENSO) forecasts up to one year in advance, they are predominantly trained on climate model simulations that provide thousands of years of training data at the expense of introducing climate model biases. Simpler Linear Inverse Models (LIMs) trained on the much shorter observational record also make skillful ENSO predictions but do not capture predictable nonlinear processes. This motivates a hybrid approach, combining the LIMs modest data needs with a deep-learning non-Markovian correction of the LIM. For O(100 yr) datasets, our resulting Hybrid model is more skillful than the LIM while also exceeding the skill of a full deep-learning model. Additionally, while the most predictable ENSO events are still identified in advance by the LIM, they are better predicted by the Hybrid model, especially in the western tropical Pacific for leads beyond about 9 months, by capturing the subsequent asymmetric (warm versus cold phases) evolution of ENSO.

Using Deep Learning to Identify Initial Error Sensitivity of ENSO Forecasts

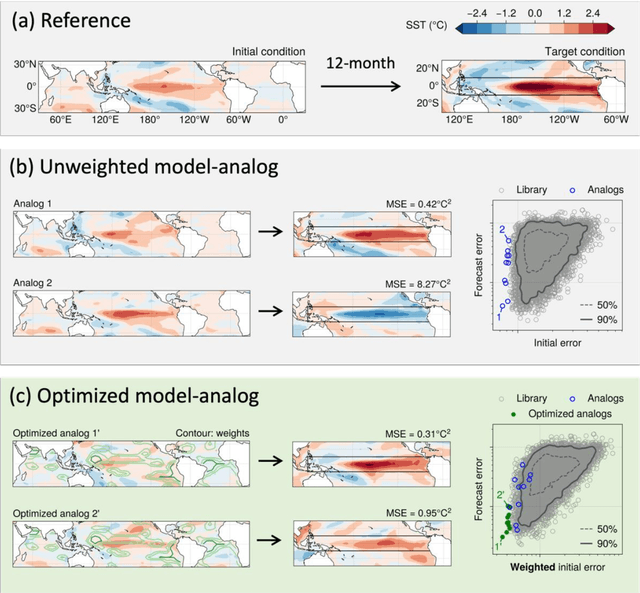

We introduce a hybrid method that integrates deep learning with model-analog forecasting, a straightforward yet effective approach that generates forecasts from similar initial climate states in a repository of model simulations. This hybrid framework employs a convolutional neural network to estimate state-dependent weights to identify analog states. The advantage of our method lies in its physical interpretability, offering insights into initial-error-sensitive regions through estimated weights and the ability to trace the physically-based temporal evolution of the system through analog forecasting. We evaluate our approach using the Community Earth System Model Version 2 Large Ensemble to forecast the El Ni\~no-Southern Oscillation (ENSO) on a seasonal-to-annual time scale. Results show a 10% improvement in forecasting sea surface temperature anomalies over the equatorial Pacific at 9-12 months leads compared to the traditional model-analog technique. Furthermore, our hybrid model demonstrates improvements in boreal winter and spring initialization when evaluated against a reanalysis dataset. Our deep learning-based approach reveals state-dependent sensitivity linked to various seasonally varying physical processes, including the Pacific Meridional Modes, equatorial recharge oscillator, and stochastic wind forcing. Notably, disparities emerge in the sensitivity associated with El Ni\~no and La Ni\~na events. We find that sea surface temperature over the tropical Pacific plays a more crucial role in El Ni\~no forecasting, while zonal wind stress over the same region exhibits greater significance in La Ni\~na prediction. This approach has broad implications for forecasting diverse climate phenomena, including regional temperature and precipitation, which are challenging for the traditional model-analog forecasting method.
