Multi Camera Placement via Z-buffer Rendering for the Optimization of the Coverage and the Visual Hull

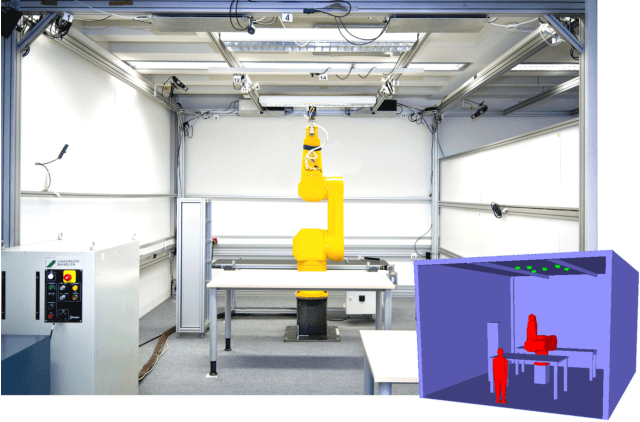

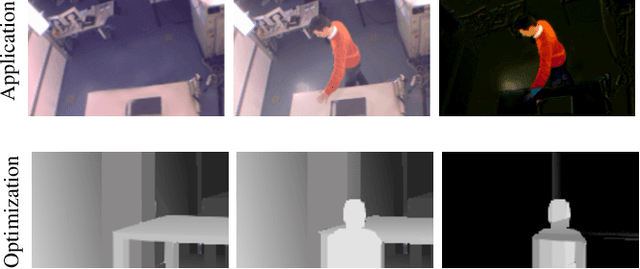

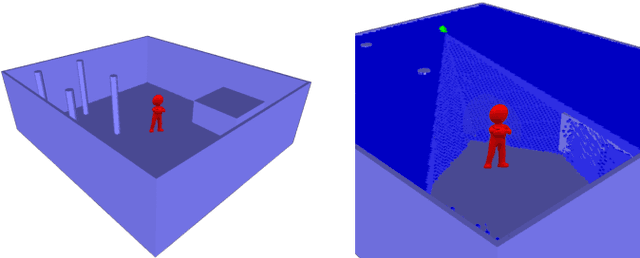

We can only allow human-robot-cooperation in a common work cell if the human integrity is guaranteed. A surveillance system with multiple cameras can detect collisions without contact to the human collaborator. A failure safe system needs to optimally cover the important areas of the robot work cell with safety overlap. We propose an efficient algorithm for optimally placing and orienting the cameras in a 3D CAD model of the work cell. In order to evaluate the quality of the camera constellation in each step, our method simulates the vision system using a z-buffer rendering technique for image acquisition, a voxel space for the overlap and a refined visual hull method for a conservative human reconstruction. The simulation allows to evaluate the quality with respect to the distortion of images and advanced image analysis in the presence of static and dynamic visual obstacles such as tables, racks, walls, robots and people. Our method is ideally suited for maximizing the coverage of multiple cameras or minimizing an error made by the visual hull and can be extended to probabilistic space carving.

Efficient Global Optimization of Non-differentiable, Symmetric Objectives for Multi Camera Placement

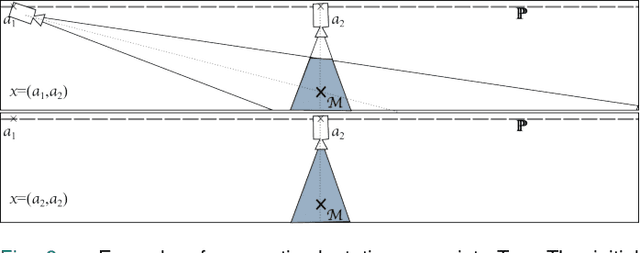

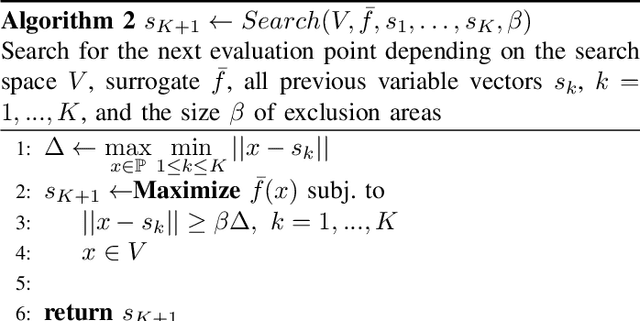

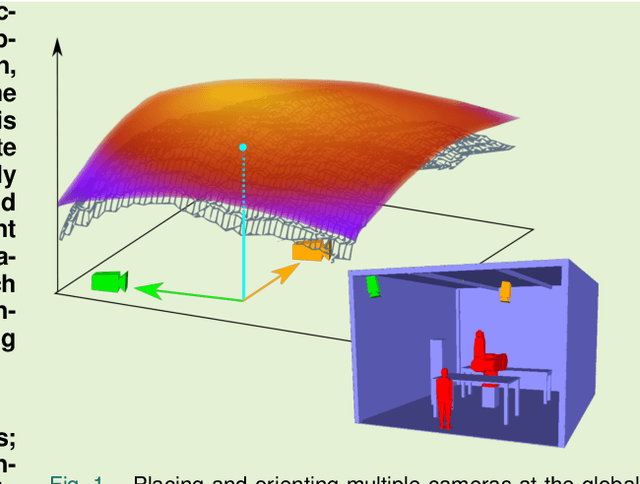

We propose a novel iterative method for optimally placing and orienting multiple cameras in a 3D scene. Sample applications include improving the accuracy of 3D reconstruction, maximizing the covered area for surveillance, or improving the coverage in multi-viewpoint pedestrian tracking. Our algorithm is based on a block-coordinate ascent combined with a surrogate function and an exclusion area technique. This allows to flexibly handle difficult objective functions that are often expensive and quantized or non-differentiable. The solver is globally convergent and easily parallelizable. We show how to accelerate the optimization by exploiting special properties of the objective function, such as symmetry. Additionally, we discuss the trade-off between non-optimal stationary points and the cost reduction when optimizing the viewpoints consecutively.
