Anthropomorphic finger for grasping applications: 3D printed endoskeleton in a soft skin

Application of soft and compliant joints in grasping mechanisms received an increasing attention during recent years. This article suggests the design and development of a novel bio-inspired compliant finger which is composed of a 3D printed rigid endoskeleton covered by a soft matter. The overall integrated system resembles a biological structure in which a finger presents an anthropomorphic look. The mechanical properties of such structure are enhanced through optimization of the repetitive geometrical structures that constructs a flexure bearing as a joint for the fingers. The endoskeleton is formed by additive manufacturing of such geometries with rigid materials. The geometry of the endoskeleton was studied by finite element analysis (FEA) to obtain the desired properties: high stiffness against lateral deflection and twisting, and low stiffness in the desired bending axis of the fingers. Results are validated by experimental analysis.

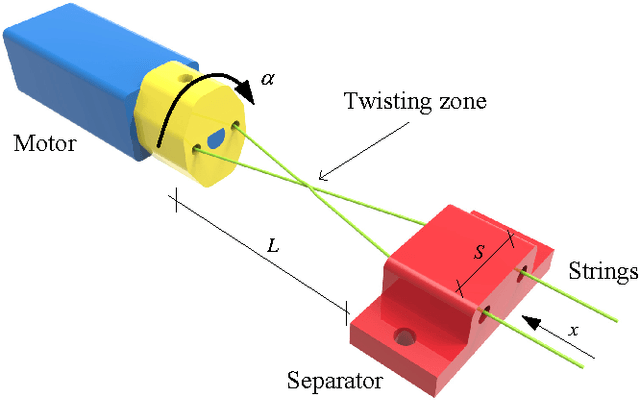

A compact two-phase twisted string actuation system: Modeling and validation

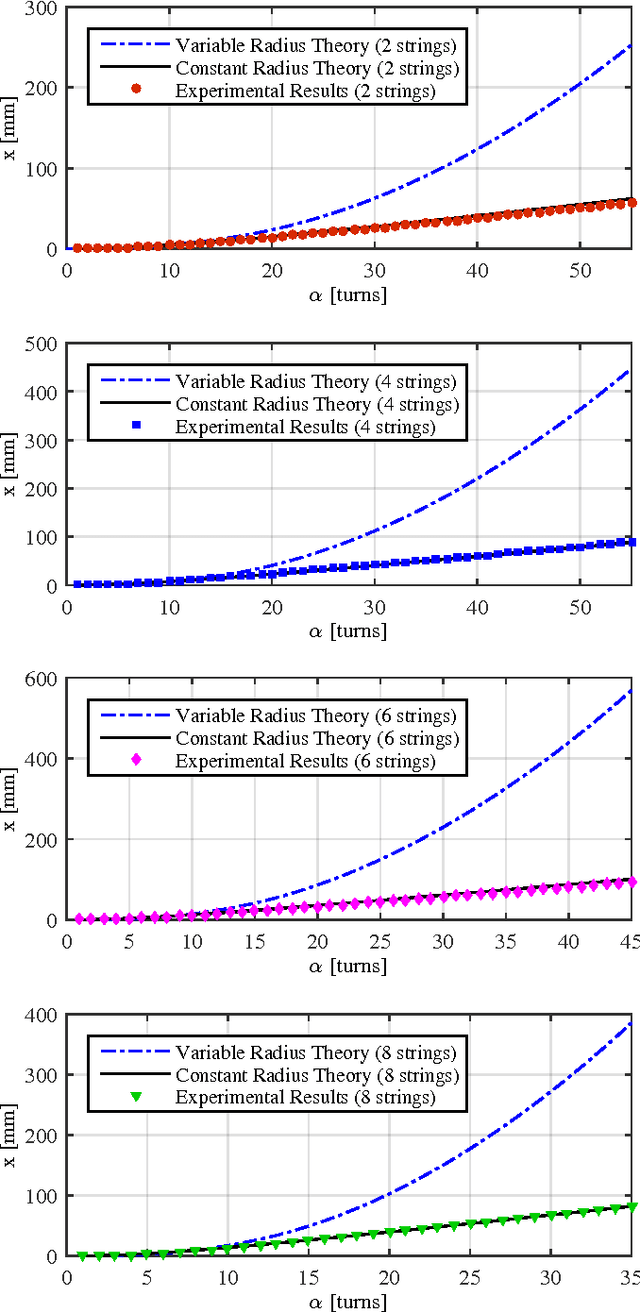

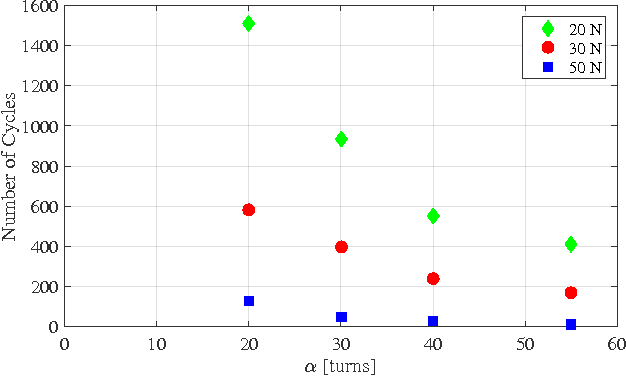

In this paper, we propose a compact twisted string actuation system that achieves a high contraction percentage (81%) on two phases: multi string twist and overtwist. This type of system can be used in many robotic applications, such as robotic hands and exoskeletons. The overtwist phase enables the development of more compact actuators based on the twisted string systems. Furthermore, by analyzing the previously developed mathematical models, we found out that a constant radius model should be applied for the overtwisting phase. Moreover, we propose an improvement of an existing model for prediction of the radius of the multi string system after they twist around each other. This model helps to better estimate the bundle diameter which results in a more precise mathematical model for multi string systems. The model was validated by performing experiments with 2, 4, 6 and 8 string systems. Finally, we performed extensive life cycle tests with different loads and contractions to find out the expected life of the system.
