Proof of Reasoning for Privacy Enhanced Federated Blockchain Learning at the Edge

Consensus mechanisms are the core of any blockchain system. However, the majority of these mechanisms do not target federated learning directly nor do they aid in the aggregation step. This paper introduces Proof of Reasoning (PoR), a novel consensus mechanism specifically designed for federated learning using blockchain, aimed at preserving data privacy, defending against malicious attacks, and enhancing the validation of participating networks. Unlike generic blockchain consensus mechanisms commonly found in the literature, PoR integrates three distinct processes tailored for federated learning. Firstly, a masked autoencoder (MAE) is trained to generate an encoder that functions as a feature map and obfuscates input data, rendering it resistant to human reconstruction and model inversion attacks. Secondly, a downstream classifier is trained at the edge, receiving input from the trained encoder. The downstream network's weights, a single encoded datapoint, the network's output and the ground truth are then added to a block for federated aggregation. Lastly, this data facilitates the aggregation of all participating networks, enabling more complex and verifiable aggregation methods than previously possible. This three-stage process results in more robust networks with significantly reduced computational complexity, maintaining high accuracy by training only the downstream classifier at the edge. PoR scales to large IoT networks with low latency and storage growth, and adapts to evolving data, regulations, and network conditions.

IoT Federated Blockchain Learning at the Edge

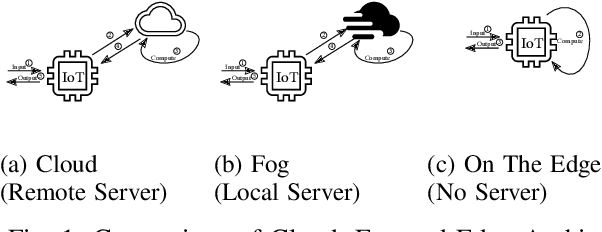

IoT devices are sorely underutilized in the medical field, especially within machine learning for medicine, yet they offer unrivaled benefits. IoT devices are low-cost, energy-efficient, small and intelligent devices. In this paper, we propose a distributed federated learning framework for IoT devices, more specifically for IoMT (Internet of Medical Things), using blockchain to allow for a decentralized scheme improving privacy and efficiency over a centralized system; this allows us to move from the cloud-based architectures, that are prevalent, to the edge. The system is designed for three paradigms: 1) Training neural networks on IoT devices to allow for collaborative training of a shared model whilst decoupling the learning from the dataset to ensure privacy. Training is performed in an online manner simultaneously amongst all participants, allowing for the training of actual data that may not have been present in a dataset collected in the traditional way and dynamically adapt the system whilst it is being trained. 2) Training of an IoMT system in a fully private manner such as to mitigate the issue with confidentiality of medical data and to build robust, and potentially bespoke, models where not much, if any, data exists. 3) Distribution of the actual network training, something federated learning itself does not do, to allow hospitals, for example, to utilize their spare computing resources to train network models.
