SurvBeNIM: The Beran-Based Neural Importance Model for Explaining the Survival Models

A new method called the Survival Beran-based Neural Importance Model (SurvBeNIM) is proposed. It aims to explain predictions of machine learning survival models, which are in the form of survival or cumulative hazard functions. The main idea behind SurvBeNIM is to extend the Beran estimator by incorporating the importance functions into its kernels and by implementing these importance functions as a set of neural networks which are jointly trained in an end-to-end manner. Two strategies of using and training the whole neural network implementing SurvBeNIM are proposed. The first one explains a single instance, and the neural network is trained for each explained instance. According to the second strategy, the neural network only learns once on all instances from the dataset and on all generated instances. Then the neural network is used to explain any instance in a dataset domain. Various numerical experiments compare the method with different existing explanation methods. A code implementing the proposed method is publicly available.

SurvBeX: An explanation method of the machine learning survival models based on the Beran estimator

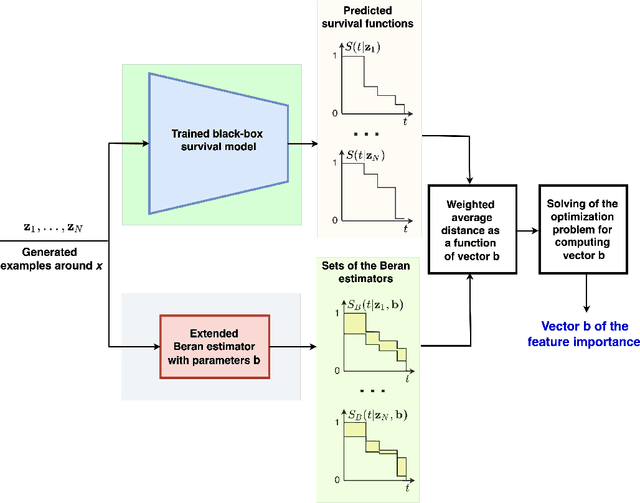

An explanation method called SurvBeX is proposed to interpret predictions of the machine learning survival black-box models. The main idea behind the method is to use the modified Beran estimator as the surrogate explanation model. Coefficients, incorporated into Beran estimator, can be regarded as values of the feature impacts on the black-box model prediction. Following the well-known LIME method, many points are generated in a local area around an example of interest. For every generated example, the survival function of the black-box model is computed, and the survival function of the surrogate model (the Beran estimator) is constructed as a function of the explanation coefficients. In order to find the explanation coefficients, it is proposed to minimize the mean distance between the survival functions of the black-box model and the Beran estimator produced by the generated examples. Many numerical experiments with synthetic and real survival data demonstrate the SurvBeX efficiency and compare the method with the well-known method SurvLIME. The method is also compared with the method SurvSHAP. The code implementing SurvBeX is available at: https://github.com/DanilaEremenko/SurvBeX
