Physical encryption and decryption for secure data transmission in optical networks leveraging the temporal Talbot effect and microwave photonics

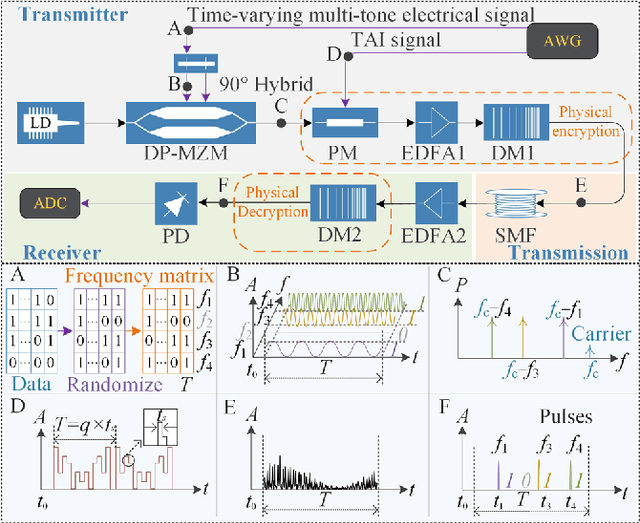

A novel microwave photonic scheme for secure data transmission in optical networks is proposed. The security of the scheme is guaranteed by physical encryption and decryption via the temporal Talbot effect in dispersive mediums. First, the original data is randomized in the digital domain by performing an exclusive OR operation using a random matrix. Subsequently, a time-varying multi-tone electrical signal, which represents the randomized data matrix, is modulated onto an optical carrier. The optical signal after modulation is then phase-modulated by a temporal Talbot array illuminator (TAI) signal, and the optical signal after discrete quadratic phase modulation will lose its original appearance in the frequency domain and be further dispersed in the first dispersive medium. Due to the dispersion that does not match the TAI signal exactly, the waveform after the first dispersive medium is a noise-like signal. Hence, the physical encryption of the original data is successfully achieved. As the optical signal passes a second dispersive medium that makes the total dispersion match the TAI signal, the temporal waveform of the noise-like signal after photodetection is transformed into pulses. "1" and "0" in the randomized data matrix are represented through the presence and absence of pulses, and the physical decryption is achieved. By further processing the recovered data matrix using the random matrix, the original data can be recovered. The physical layer security of the proposed scheme and its fiber transmission capability are demonstrated. 8-Gbit/s data is transmitted, encrypted, and decrypted using two dispersive mediums and an optical fiber of 10 to 200 km, and error-free transmission is achieved. Many factors that affect the encryption, decryption, and transmission performance of the system have been analyzed.
