Enhanced Correlation Matching based Video Frame Interpolation

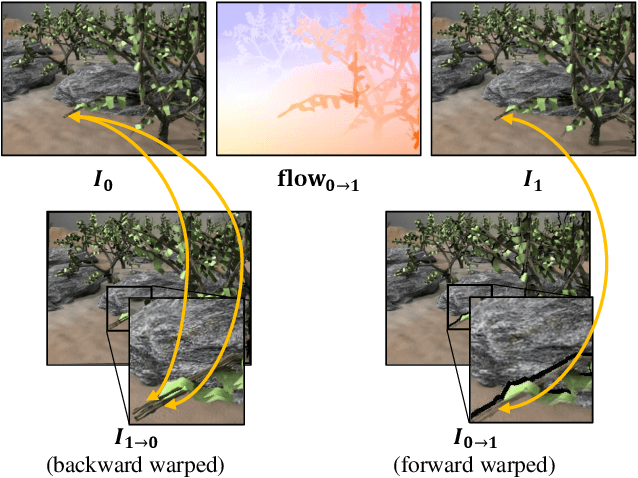

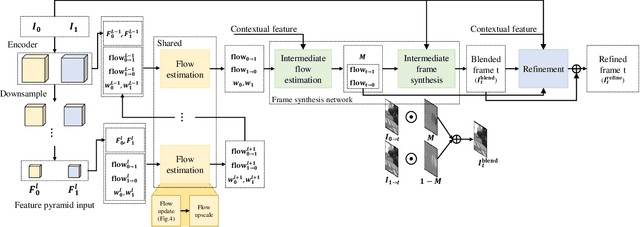

We propose a novel DNN based framework called the Enhanced Correlation Matching based Video Frame Interpolation Network to support high resolution like 4K, which has a large scale of motion and occlusion. Considering the extensibility of the network model according to resolution, the proposed scheme employs the recurrent pyramid architecture that shares the parameters among each pyramid layer for optical flow estimation. In the proposed flow estimation, the optical flows are recursively refined by tracing the location with maximum correlation. The forward warping based correlation matching enables to improve the accuracy of flow update by excluding incorrectly warped features around the occlusion area. Based on the final bi-directional flows, the intermediate frame at arbitrary temporal position is synthesized using the warping and blending network and it is further improved by refinement network. Experiment results demonstrate that the proposed scheme outperforms the previous works at 4K video data and low-resolution benchmark datasets as well in terms of objective and subjective quality with the smallest number of model parameters.
