mmWave Wearable Antenna for Interaction with VR Devices

The VR industry is one of the most promising industries for the near future, as it can provide a more immersive connection between people and the virtual world. Currently, VR devices interact with people using inconvenient controllers or cameras that perform poorly in dark environments. Interaction through millimeter-wave wearable devices has the potential to conveniently track human behavior regardless of the lighting conditions. In this study, a millimeter-wave wearable antenna was developed, opening up the possibility for more immersive interaction with VR devices. The antenna features a low loss tangent polyester fabric to minimize dielectric losses and a smooth coating to reduce losses due to rough surfaces. The antenna operates in the 24GHz ISM band, with an S11 value of -29dB at 24.15GHz.

NR-Surface: NextG-ready $μ$W-reconfigurable mmWave Metasurface

Metasurface has recently emerged as an economic solution to expand mmWave coverage. However, their pervasive deployment remains a challenge, mainly due to the difficulty in reaching the tight 260ns NR synchronization requirement and real-time wireless reconfiguration while maintaining multi-year battery life. This paper presents NR-Surface, the first real-time reconfigurable metasurface fully compliant with the NR standard, operating at 242.7 $\mu$W for a 2.1-year lifetime on an AA battery. NR-Surface incorporates (i) a new extremely low-power (14KHz sampling) reconfiguration interface, NarrowBand Packet Unit (NBPU), for synchronization and real-time reconfiguration, and (ii) a highly responsive and low-leakage metasurface designed for low-duty cycled operation, by carefully leveraging the structure and the periodicity of the NR beam management procedure in the NR standard. NR-Surface is prototyped and evaluated end-to-end with NR BS built on srsRAN to demonstrate diverse usage scenarios including multiple NR-Surface per BS, multiple UE per NR-Surface, and 3D beamforming. Around-the-corner UE evaluations showcase NR-Surface efficacy under different user mobility patterns (20.3dB gain) and dynamic blockage (22.2dB gain).

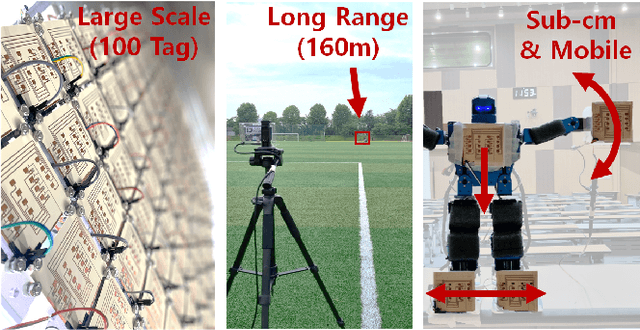

Hawkeye: Hectometer-range Subcentimeter Localization for Large-scale mmWave Backscatter

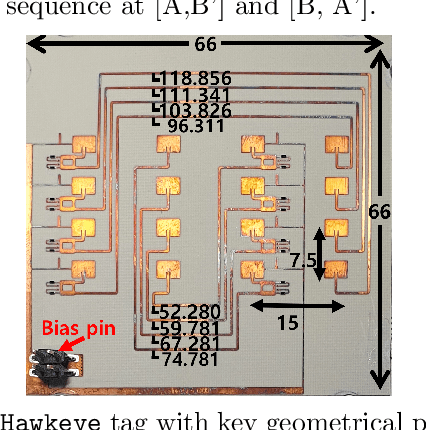

Accurate localization of a large number of objects over a wide area is one of the keys to the pervasive interaction with the Internet of Things. This paper presents Hawkeye, a new mmWave backscatter that, for the first time, offers over (i) hundred-scale simultaneous 3D localization at (ii) subcentimeter accuracy for over an (iii) hectometer distance. Hawkeye generally applies to indoors and outdoors as well as under mobility. Hawkeye tag's Van Atta Array design with retro-reflectivity in both elevation and azimuth planes offers 3D localization and effectively suppresses the multipath. Hawkeye localization algorithm is a lightweight signal processing compatible with the commodity FMCW radar. It uniquely leverages the interplay between the tag signal and clutter, and leverages the spetral leakage for fine-grained positioning. Prototype evaluations in corridor, lecture room, and soccer field reveal 6.7 mm median accuracy at 160 m range, and simultaneously localizes 100 tags in only 33.2 ms. Hawkeye is reliable under temperature change with significant oscillator frequency offset.
