Vision Transformer Based User Equipment Positioning

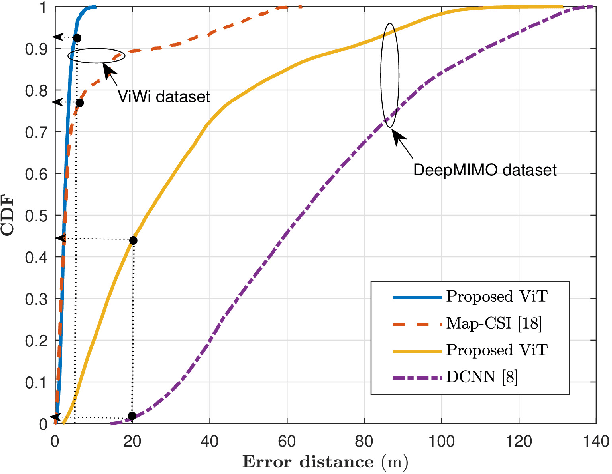

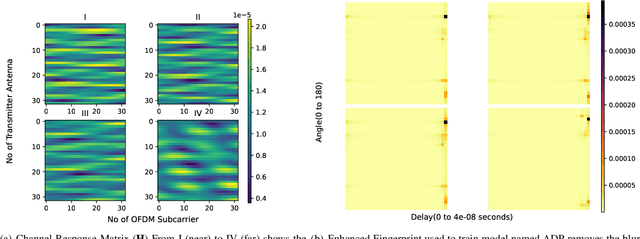

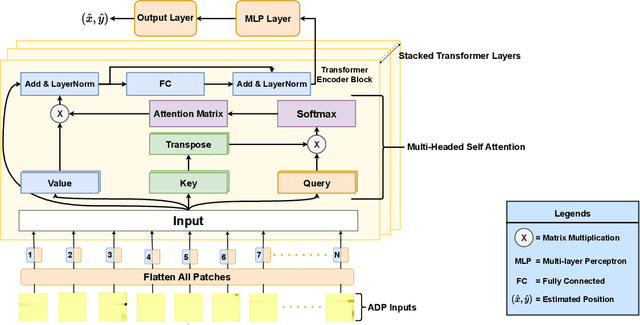

Recently, Deep Learning (DL) techniques have been used for User Equipment (UE) positioning. However, the key shortcomings of such models is that: i) they weigh the same attention to the entire input; ii) they are not well suited for the non-sequential data e.g., when only instantaneous Channel State Information (CSI) is available. In this context, we propose an attention-based Vision Transformer (ViT) architecture that focuses on the Angle Delay Profile (ADP) from CSI matrix. Our approach, validated on the `DeepMIMO' and `ViWi' ray-tracing datasets, achieves an Root Mean Squared Error (RMSE) of 0.55m indoors, 13.59m outdoors in DeepMIMO, and 3.45m in ViWi's outdoor blockage scenario. The proposed scheme outperforms state-of-the-art schemes by $\sim$ 38\%. It also performs substantially better than other approaches that we have considered in terms of the distribution of error distance.

Asymptotic Analysis of the Downlink in Cooperative Massive MIMO Systems

We consider the downlink of a cooperative cellular communications system, where several base-stations around each mobile cooperate and perform zero-forcing to reduce the received interference at the mobile. We derive closed-form expressions for the asymptotic performance of the network as the number of antennas per base station grows large. These expressions capture the trade off between various system parameters, and characterize the joint effect of noise and interference (where either noise or interference is asymptotically dominant and where both are asymptotically relevant). The asymptotic results are verified using Monte Carlo simulations, which indicate that they are useful even when the number of antennas per base station is only moderately large. Additionally, we show that when the number of antennas per base station grows large, power allocation can be optimized locally at each base station. We hence present a power allocation algorithm that achieves near optimal performance while significantly reducing the coordination overhead between base stations. The presented analysis is significantly more challenging than the uplink analysis, due to the dependence between beamforming vectors of nearby base stations. This statistical dependence is handled by introducing novel bounds on marked shot-noise point processes with dependent marks, which are also useful in other contexts.

Rate Forecaster based Energy Aware Band Assignment in Multiband Networks

The high frequency communication bands (mmWave and sub-THz) promise tremendous data rates, however, they also have very high power consumption which is particularly significant for battery-power-limited user-equipment (UE). In this context, we design an energy aware band assignment system which reduces the power consumption while also achieving a target sum rate of M in T time-slots. We do this by using 1) Rate forecaster(s); 2) Channel forecaster(s) which forecasts T direct multistep ahead using a stacked (long short term memory) LSTM architecture. We propose an iterative rate updating algorithm which updates the target rate based on current rate and future predicted rates in a frame. The proposed approach is validated on the publicly available `DeepMIMO' dataset. Research findings shows that the rate forecaster based approach performs better than the channel forecaster. Furthermore, LSTM based predictions outperforms well celebrated Transformer predictions in terms of NRMSE and NMAE. Research findings reveals that the power consumption with this approach is ~ 300 mW lower compared to a greedy band assignment at a 1.5Gb/s target rate.
