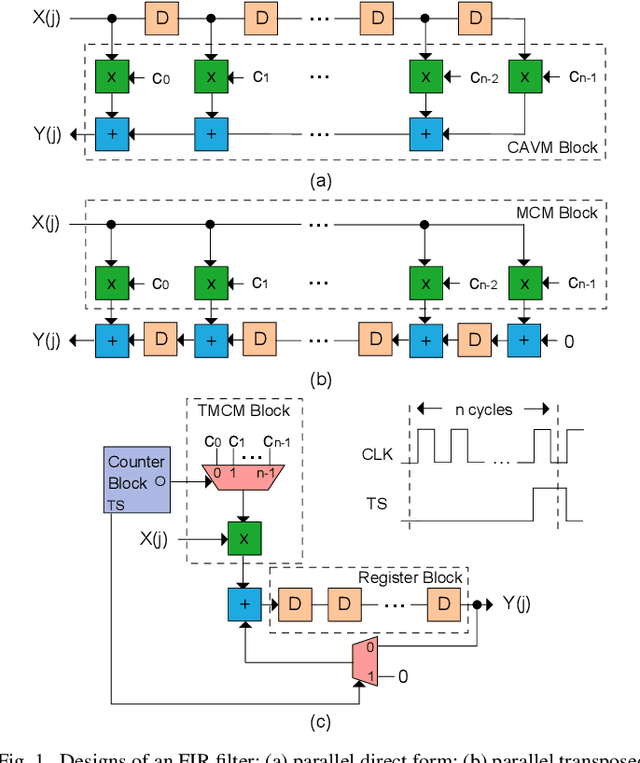

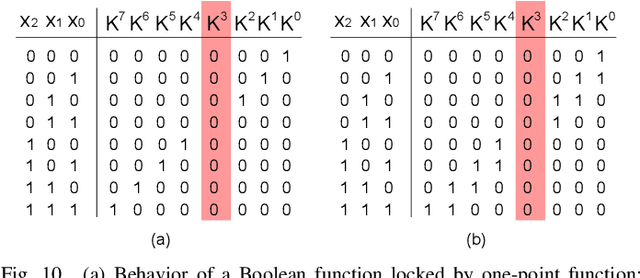

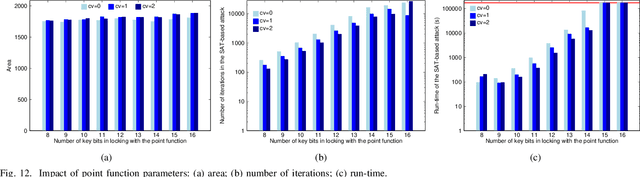

Hybrid Protection of Digital FIR Filters

A digital Finite Impulse Response (FIR) filter is a ubiquitous block in digital signal processing applications and its behavior is determined by its coefficients. To protect filter coefficients from an adversary, efficient obfuscation techniques have been proposed, either by hiding them behind decoys or replacing them by key bits. In this article, we initially introduce a query attack that can discover the secret key of such obfuscated FIR filters, which could not be broken by existing prominent attacks. Then, we propose a first of its kind hybrid technique, including both hardware obfuscation and logic locking using a point function for the protection of parallel direct and transposed forms of digital FIR filters. Experimental results show that the hybrid protection technique can lead to FIR filters with higher security while maintaining the hardware complexity competitive or superior to those locked by prominent logic locking methods. It is also shown that the protected multiplier blocks and FIR filters are resilient to existing attacks. The results on different forms and realizations of FIR filters show that the parallel direct form FIR filter has a promising potential for a secure design.

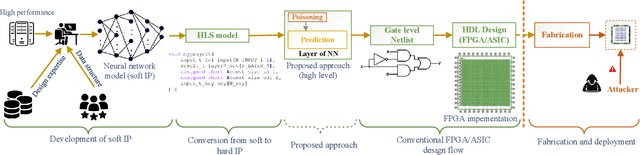

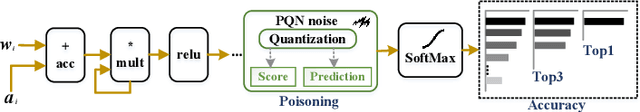

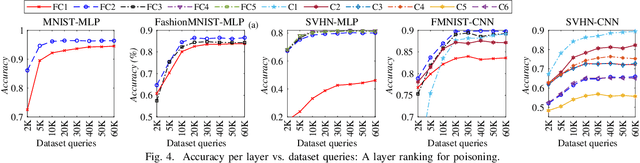

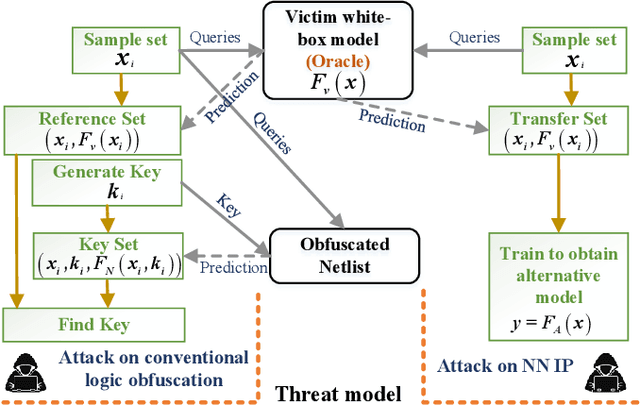

Preventing Distillation-based Attacks on Neural Network IP

Neural networks (NNs) are already deployed in hardware today, becoming valuable intellectual property (IP) as many hours are invested in their training and optimization. Therefore, attackers may be interested in copying, reverse engineering, or even modifying this IP. The current practices in hardware obfuscation, including the widely studied logic locking technique, are insufficient to protect the actual IP of a well-trained NN: its weights. Simply hiding the weights behind a key-based scheme is inefficient (resource-hungry) and inadequate (attackers can exploit knowledge distillation). This paper proposes an intuitive method to poison the predictions that prevent distillation-based attacks; this is the first work to consider such a poisoning approach in hardware-implemented NNs. The proposed technique obfuscates a NN so an attacker cannot train the NN entirely or accurately. We elaborate a threat model which highlights the difference between random logic obfuscation and the obfuscation of NN IP. Based on this threat model, our security analysis shows that the poisoning successfully and significantly reduces the accuracy of the stolen NN model on various representative datasets. Moreover, the accuracy and prediction distributions are maintained, no functionality is disturbed, nor are high overheads incurred. Finally, we highlight that our proposed approach is flexible and does not require manipulation of the NN toolchain.

Hardware Obfuscation of Digital FIR Filters

A finite impulse response (FIR) filter is a ubiquitous block in digital signal processing applications. Its characteristics are determined by its coefficients, which are the intellectual property (IP) for its designer. However, in a hardware efficient realization, its coefficients become vulnerable to reverse engineering. This paper presents a filter design technique that can protect this IP, taking into account hardware complexity and ensuring that the filter behaves as specified only when a secret key is provided. To do so, coefficients are hidden among decoys, which are selected beyond possible values of coefficients using three alternative methods. As an attack scenario, an adversary at an untrusted foundry is considered. A reverse engineering technique is developed to find the chosen decoy selection method and explore the potential leakage of coefficients through decoys. An oracle-less attack is also used to find the secret key. Experimental results show that the proposed technique can lead to filter designs with competitive hardware complexity and higher resiliency to attacks with respect to previously proposed methods.
