Conflict-Aware Active Automata Learning

Active automata learning algorithms cannot easily handle conflict in the observation data (different outputs observed for the same inputs). This inherent inability to recover after a conflict impairs their effective applicability in scenarios where noise is present or the system under learning is mutating. We propose the Conflict-Aware Active Automata Learning (C3AL) framework to enable handling conflicting information during the learning process. The core idea is to consider the so-called observation tree as a first-class citizen in the learning process. Though this idea is explored in recent work, we take it to its full effect by enabling its use with any existing learner and minimizing the number of tests performed on the system under learning, specially in the face of conflicts. We evaluate C3AL in a large set of benchmarks, covering over 30 different realistic targets, and over 18,000 different scenarios. The results of the evaluation show that C3AL is a suitable alternative framework for closed-box learning that can better handle noise and mutations.

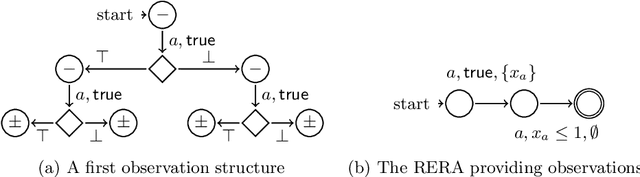

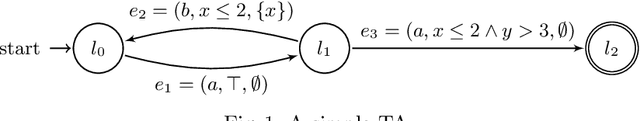

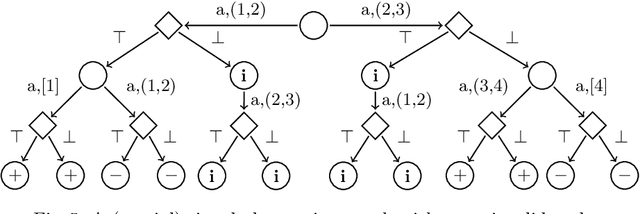

Active learning of timed automata with unobservable resets

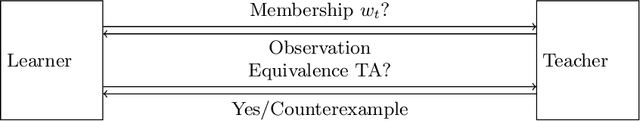

Active learning of timed languages is concerned with the inference of timed automata from observed timed words. The agent can query for the membership of words in the target language, or propose a candidate model and verify its equivalence to the target. The major difficulty of this framework is the inference of clock resets, central to the dynamics of timed automata, but not directly observable. Interesting first steps have already been made by restricting to the subclass of event-recording automata, where clock resets are tied to observations. In order to advance towards learning of general timed automata, we generalize this method to a new class, called reset-free event-recording automata, where some transitions may reset no clocks. This offers the same challenges as generic timed automata while keeping the simpler framework of event-recording automata for the sake of readability. Central to our contribution is the notion of invalidity, and the algorithm and data structures to deal with it, allowing on-the-fly detection and pruning of reset hypotheses that contradict observations, a key to any efficient active-learning procedure for generic timed automata.
