Reliable Linearized Phase Retrieval for Near-Field Antenna Measurements with Truncated Measurement Surfaces

Most methods tackling the phase retrieval problem of magnitude-only antenna measurements suffer from unrealistic sampling requirements, from unfeasible computational complexities, and, most severely, from the lacking reliability of nonlinear and nonconvex formulations. As an alternative, we propose a partially coherent (PC) multi-probe measurement technique and an associated linear reconstruction method which mitigate all these issues. Hence, reliable and accurate phase retrieval can be achieved in near-field far-field transformations (NFFFTs). In particular, we resolve the issues related to open measurement surfaces (as they may emerge in drone-based measurement setups) and we highlight the importance of considering the measurement setup and the phaseless NFFFT simultaneously. Specifically, the influence of special multi-probe arrangements on the reconstruction quality of PC solvers is shown.

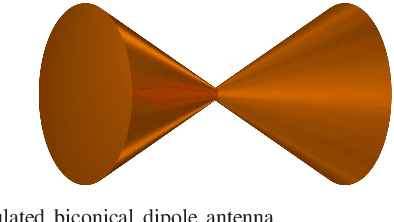

Multi-Frequency Phase Retrieval for Antenna Measurements

Phase retrieval problems in antenna measurements arise when a reference phase cannot be provided to all measurement locations. Phase retrieval algorithms require sufficiently many independent measurement samples of the radiated fields to be successful. Larger amounts of independent data may improve the reconstruction of the phase information from magnitude-only measurements. We show how the knowledge of relative phases among the spectral components of a modulated signal at the individual measurement locations may be employed to reconstruct the relative phases between different measurement locations at all frequencies. Projection matrices map the estimated phases onto the space of fields possibly generated by equivalent antenna under test (AUT) sources at all frequencies. In this way, the phase of the reconstructed solution is not only restricted by the measurement samples at one frequency, but by the samples at allfrequencies simultaneously. The proposed method can increase the amount of independent phase information even if all probes are located in the far field of the AUT.
