Constraint based Modeling according to Reference Design

Reference models in form of best practices are an essential element to ensured knowledge as design for reuse. Popular modeling approaches do not offer mechanisms to embed reference models in a supporting way, let alone a repository of it. Therefore, it is hardly possible to profit from this expertise. The problem is that the reference models are not described formally enough to be helpful in developing solutions. Consequently, the challenge is about the process, how a user can be supported in designing dedicated solutions assisted by reference models. In this paper, we present a generic approach for the formal description of reference models using semantic technologies and their application. Our modeling assistant allows the construction of solution models using different techniques based on reference building blocks. This environment enables the subsequent verification of the developed designs against the reference models for conformity. Therefore, our reference modeling assistant highlights the interdependency. The application of these techniques contributes to the formalization of requirements and finally to quality assurance in context of maturity model. It is possible to use multiple reference models in context of system of system designs. The approach is evaluated in industrial area and it can be integrated into different modeling landscapes.

Methodology for Holistic Reference Modeling in Systems Engineering

Models in face of increasing complexity support development of new systems and enterprises. For an efficient procedure, reference models are adapted in order to reach a solution with les overhead which covers all necessary aspects. Here, a key challenge is applying a consistent methodology for the descriptions of such reference designs. This paper presents a holistic approach to describe reference models across different views and levels. Modeling stretches from the requirements and capabilities over their subdivision to services and components up to the realization in processes and data structures. Benefits include an end-to-end traceability of the capability coverage with performance parameters considered already at the starting point of the reference design. This enables focused development while considering design constraints and potential bottlenecks. We demonstrate the approach on the example of the development of a smart robot. Here, our methodology highly supports transferability of designs for the development of further systems.

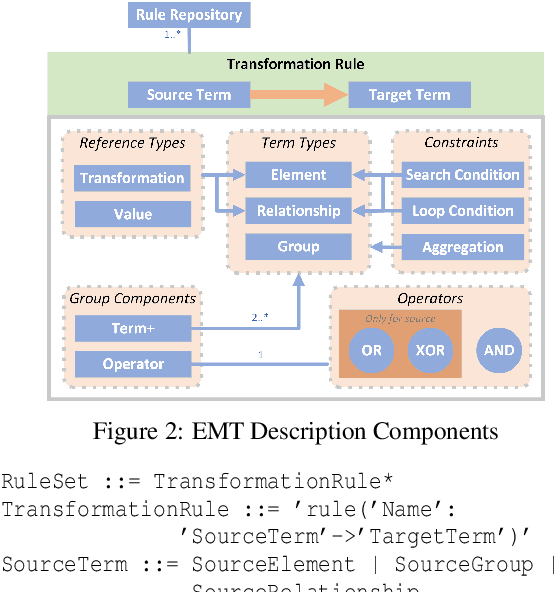

Enterprise Architecture Model Transformation Engine

With increasing linkage within value chains, the IT systems of different companies are also being connected with each other. This enables the integration of services within the movement of Industry 4.0 in order to improve the quality and performance of the processes. Enterprise architecture models form the basis for this with a better buisness IT-alignment. However, the heterogeneity of the modeling frameworks and description languages makes a concatenation considerably difficult, especially differences in syntax, semantic and relations. Therefore, this paper presents a transformation engine to convert enterprise architecture models between several languages. We developed the first generic translation approach that is free of specific meta-modeling, which is flexible adaptable to arbitrary modeling languages. The transformation process is defined by various pattern matching techniques using a rule-based description language. It uses set theory and first-order logic for an intuitive description as a basis. The concept is practical evaluated using an example in the area of a large German IT-service provider. Anyhow, the approach is applicable between a wide range of enterprise architecture frameworks.

Automated Enterprise Architecture Model Mining

Metadata are like the steam engine of the 21st century, driving businesses and offer multiple enhancements. Nevertheless, many companies are unaware that these data can be used efficiently to improve their own operation. This is where the Enterprise Architecture Framework comes in. It empowers an organisation to get a clear view of their business, application, technical and physical layer. This modelling approach is an established method for organizations to take a deeper look into their structure and processes. The development of such models requires a great deal of effort, is carried out manually by interviewing stakeholders and requires continuous maintenance. Our new approach enables the automated mining of Enterprise Architecture models. The system uses common technologies to collect the metadata based on network traffic, log files and other information in an organisation. Based on this, the new approach generates EA models with the desired views points. Furthermore, a rule and knowledge-based reasoning is used to obtain a holistic overview. This offers a strategic decision support from business structure over process design up to planning the appropriate support technology. Therefore, it forms the base for organisations to act in an agile way. The modelling can be performed in different modelling languages, including ArchiMate and the Nato Architecture Framework (NAF). The designed approach is already evaluated on a small company with multiple services and an infrastructure with several nodes.
