Uplink OFDM Channel Prediction with Hybrid CNN-LSTM for 6G Non-Terrestrial Networks

Wireless communications are typically subject to complex channel dynamics, requiring the transmission of pilot sequences to estimate and equalize such effects and correctly receive information bits. This is especially true in 6G non-terrestrial networks (NTNs) in low Earth orbit, where one end of the communication link orbits around the Earth at several kilometers per second, and a multi-carrier waveform, such as orthogonal frequency division multiplexing (OFDM), is employed. To minimize the pilot overhead, we remove pilot symbols every other OFDM slot and propose a channel predictor to obtain the channel frequency response (CFR) matrix in absence of pilots. The algorithm employs an encoder-decoder convolutional neural network and a long short-term memory layer, along with skip connections, to predict the CFR matrix on the upcoming slot based on the current one. We demonstrate the effectiveness of the proposed predictor through numerical simulations in tapped delay line channel models, highlighting the effective throughput improvement. We further assess the generalization capabilities of the model, showing minimal throughput degradation when testing under different Doppler spreads and in both line of sight (LoS) and non-LoS propagation conditions. Finally, we discuss computational-complexity-related aspects of the lightweight hybrid CNN-LSTM architecture.

Faster-Than-Nyquist Equalization with Convolutional Neural Networks

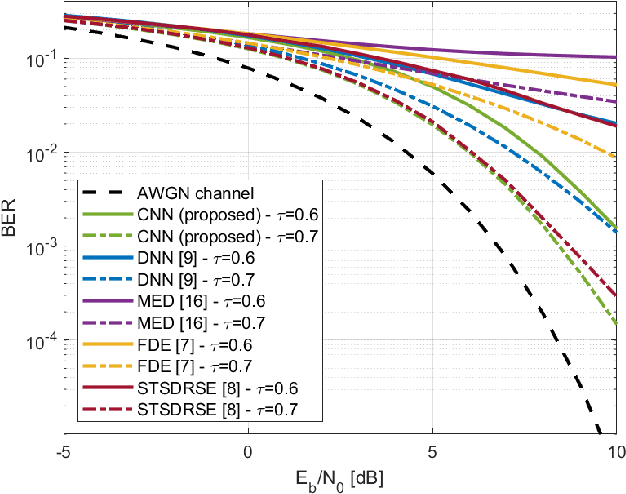

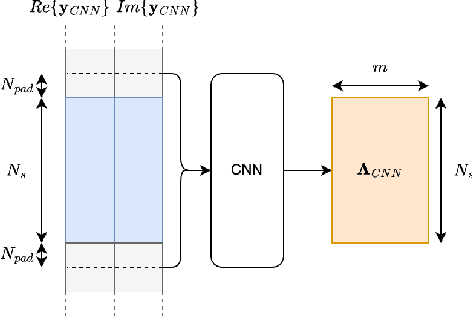

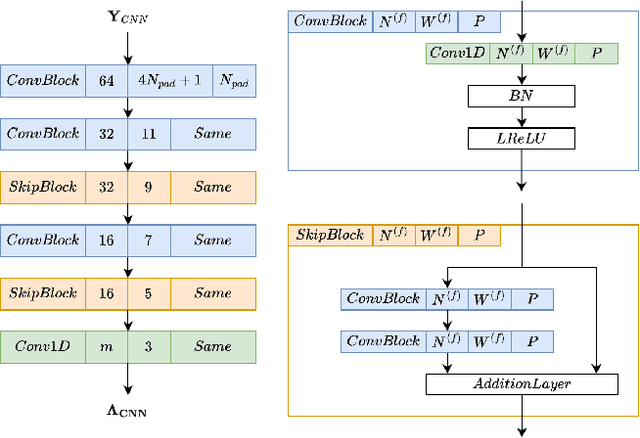

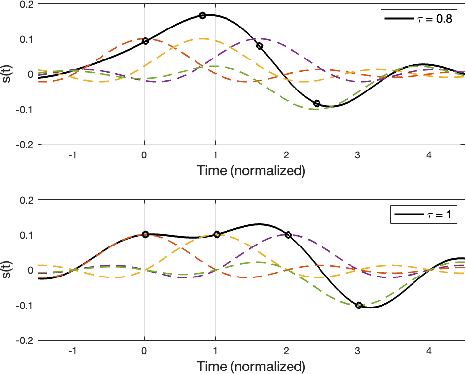

Faster-than-Nyquist (FTN) signaling aims at improving the spectral efficiency of wireless communication systems by exceeding the boundaries set by the Nyquist-Shannon sampling theorem. 50 years after its first introduction in the scientific literature, wireless communications have significantly changed, but spectral efficiency remains one of the key challenges. To adopt FTN signaling, inter-symbol interference (ISI) patterns need to be equalized at the receiver. Motivated by the pattern recognition capabilities of convolutional neural networks with skip connections, we propose such deep learning architecture for ISI equalization and symbol demodulation in FTN receivers. We investigate the performance of the proposed model considering quadrature phase shift keying modulation and low density parity check coding, and compare it to a set of benchmarks, including frequency-domain equalization, a quadratic-programming-based receiver, and an equalization scheme based on a deep neural network. We show that our receiver outperforms any benchmark, achieving error rates comparable to those in additive white Gaussian noise channel, and higher effective throughput, thanks to the increased spectral efficiency of FTN signaling. With a compression factor of 60% and code rate 3/4, the proposed model achieves a peak effective throughput of 2.5 Mbps at just 10dB of energy per bit over noise power spectral density ratio, with other receivers being limited by error floors due to the strong inter-symbol interference. To promote reproducibility in deep learning for wireless communications, our code is open source at the repository provided in the references.
