ProACT: An Augmented Reality Testbed for Intelligent Prosthetic Arms

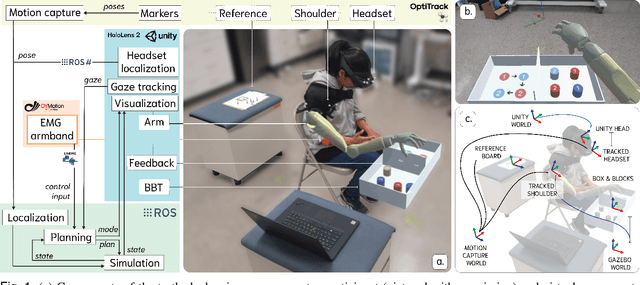

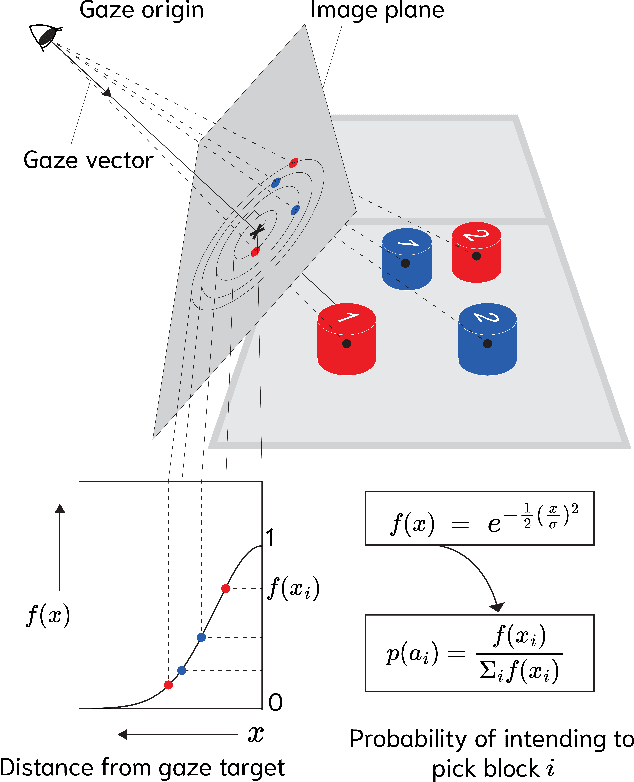

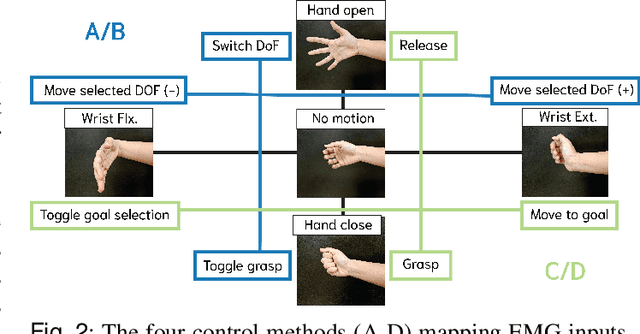

Upper-limb amputees face tremendous difficulty in operating dexterous powered prostheses. Previous work has shown that aspects of prosthetic hand, wrist, or elbow control can be improved through "intelligent" control, by combining movement-based or gaze-based intent estimation with low-level robotic autonomy. However, no such solutions exist for whole-arm control. Moreover, hardware platforms for advanced prosthetic control are expensive, and existing simulation platforms are not well-designed for integration with robotics software frameworks. We present the Prosthetic Arm Control Testbed (ProACT), a platform for evaluating intelligent control methods for prosthetic arms in an immersive (Augmented Reality) simulation setting. Using ProACT with non-amputee participants, we compare performance in a Box-and-Blocks Task using a virtual myoelectric prosthetic arm, with and without intent estimation. Our results show that methods using intent estimation improve both user satisfaction and the degree of success in the task. To the best of our knowledge, this constitutes the first study of semi-autonomous control for complex whole-arm prostheses, the first study including sequential task modeling in the context of wearable prosthetic arms, and the first testbed of its kind. Towards the goal of supporting future research in intelligent prosthetics, the system is built upon on existing open-source frameworks for robotics.
