Evaluation Method and Design Guidance for Direction Finding Antenna Systems

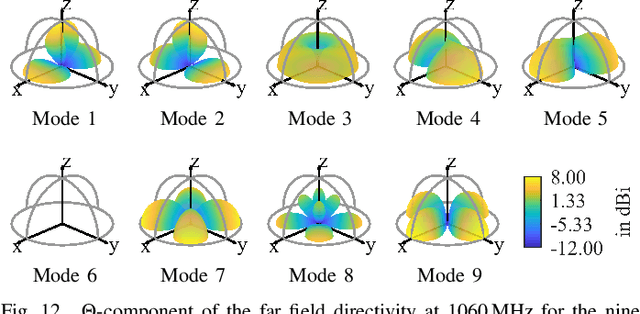

A deterministic evaluation procedure for multi-port direction finding antennas is proposed. It is based on a direction finding uncertainty parameter, which describes how well different directions of arrival and polarizations are distinguishable. By investigating a simple antenna array, it is shown that the proposed parameter provides additional insight into the behavior of an antenna system, when compared to established methods. Moreover, since the uncertainty parameter is calculated from a set of far fields, it is applicable to port far fields as well as Characteristic Modes. This finding is utilized to derive a design guidance: Starting with a set of Characteristic Mode far fields, the angular distribution of the uncertainty is investigated to verify that no ambiguities are present. Different sets of far fields are compared and the differences regarding their direction finding behavior are visualized and explained using the uncertainty in conjunction with an estimate of the incident field. To quantify these differences, a key performance indicator is introduced that summarizes the direction finding capabilities over a selected angular region. To demonstrate the design process, a Multi-Mode Multi-Port Antenna with three uncorrelated ports is developed, manufactured and measured.
